High Efficiency Multi Blade Stone Cutting Machine

US$23,000.00-31,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

YTQQ-500 600

Usage

Ceramics, Glass, Fire Brick, Red Brick, Jadestone, Cement Brick, Concrete Curb, Granite, Marble, Bridge Saw Granite Cutter Machine

Application

Machinery & Hardware, Art & Craft, Chemical, Construction, Mineral Industry, Stone Industry, Four Column Single Blade Cutting Machi

Source Voltage

380V

Automation

Automatic

Cutting Ability

High Speed

Control

CNC

Certification

API, CCC, SONCAP, GOST, ISO, CE, Multiblade Block Cutting Machine

Main Motor Power

45/55/65kw

Voltage

220/380/415V

After Sales Service Provide

Engineer Available Service Machinery Overseas

Max. Processing Size

3300X2100X1100mm

Max. Blade No.

12PCS

Water Consumption

30m3/H

Approximate Weight

12 -16 Tons

Transport Package

Seaworthy Wooden Case for Automatic Cutting Machin

Specification

7500x4000x5500mm

Trademark

Wanlong

Origin

China

HS Code

84641000

Production Capacity

5000sets Per Year

Product Description

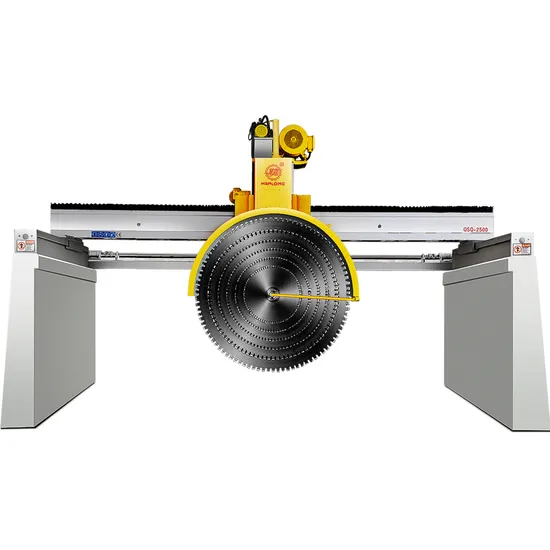

Bridge Multiblade Block Cutter (QSQ2200/2500/3000)
High efficiency for cutting block into slabs with multi-blade combination, this machine is the ideal equipment for producing large slabs.
Comparing with normal single blade cutting machine, this machine has following advantages:
Trolley is not necessary when cutting / You can lie the block on the ground/cutting several blocks of different sizes at one time.
The crossbeam movement on the side beams. There precise cutting and less maintenance are available by this machine.
The machine can take multi-blades(2500/2000/1600/1200/800mm, 2200/2000/1800/1600/1370/1160/950/740/530mm). Daily production capacity for MID-hard granite can be 170sqm while the single blade life is only 30sqm.
Mechanical system

Technical Parameter	QSQ-2200	QSQ-2500	QSQ-3000
Max. blade diameter/mm	2200	2500	3000
Max. cutting length/mm	3200	3000	2500
Max. cutting width/mm	1800	1800	1800
Max. cutting height/mm	950	1100	1350
Max. No. of blades	9	9	12
Main motor power/kw	45/55	45/55	65
Overall dimension (LxWxH)/mm	7300X4000X5500	7300X4000X5500	8500X4000X6100
Total Weight/kg	12, 000	12, 000	16, 000
