High Speed Paper Cup Machine/Cheap Paper Cup Machine/High Quality Low Price Paper Cup Machine

Product Description

ZGJ-70H-CUP cup machine Description:

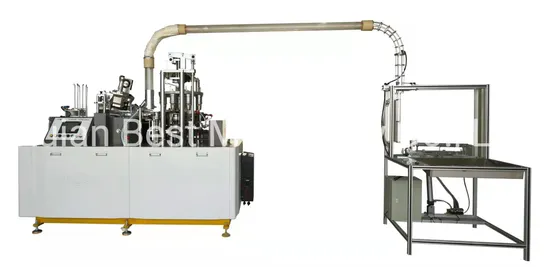

Model ZGJ-70-CUP Paper Cup Forming Machine(Disposable Tumbler Cup Making machine) is an automatic machine with multi-working station, which has the function of photocell detection, failure alarm, counter and the advantages of humanism design, safer operation and easier maintenance.
It makes one-side-PE-film-coated paper cups after running a whole procedure of automatic pre-printed fan-shape-paper feeding, cup-side-body sealing(heater), silicone-oil lubricating(for top curling, Dimethyl silicone oil 201, Food Grade), roll bottom auto punching, bottom pre-heating and pre-folding, main heating, NO bottom knurling, top curling and cup discharging.
It is an ideal equipment of making hot drinks (tea, coffee, milk) disposable paper cups and ice-cream paper cups, cake cups, one time testing cups etc.

Configuration list
Name	Model	Origin	Remarks	QTY
Main motor	CH-25-1.5	Taiwan	Chenggang	1
Frequency converter	Em60-1.5kw	Japan	Panasonic	1
Photoelectricity	PSE17-5DN	Korea	Ottonico	3
AC contactor	0910	France	France	3
Thermal couple		Domestic	Huibang	5
Temperature control instrument	AI-208G	Domestic	Yudian	5
Botton	NP2-BA31	Domestic	Chint	12
Relay	JZX-22F(D)/2Z	Domestic	Chint	5
Switching power supply	LRS-200-24	Taiwan	Ming Wei	1
Circuit breaker	DZ47-60 1P C10	Domestic	Chint	6
Circuit breaker	DZ47-60 3P D60	Domestic	Chint	1
Exchange	CJX2-1810 220V	Domestic	Chint	5
Exchange	CJX2-4011 220V	Domestic	Chint	2

8.Technical parameter

Paper Cup Size	5-12oz
Paper Material	140-320g/m2,One Side PECoated Paper Or Double
Speed	Max Speed:105pcs/min,Stable speed :85Pcs/min
Power source	380V 50HZ
Heating total power	5KW
Main motor	1.5KW
Total Power	7.5kw
Weight	2200kg
Overall size	2.23X1.14X1.8m
Air pressure	≤0.4MPa(used for auto bottom paper feeding)
Operation person	1person and more machines
Opeartion space	About 3000*3000mm
Note	Can be customized according to your requirements

---
