Portable Variable Message Sign for Traffic Safety

US$7,000.00-12,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

HL-TR-R

Pixel Pitch

50mm

Pixel Configuration

4G,4r,4W,4b,4y

Display Function

Image & Text Display, Text Display

Average Power Consumption

180W / m²

Pixel Density

400

Scanning Mode

Static Scan

Display Type

LED Dot Matrix Display

Application

Traffic Safety

Certification

CE, RoHS

LED Display

2600mm(W)*1600mm(H)

Hydraulic Rotating System

Screen Can Rotate 360degrees

Wing-Against Level

Against Level 8wind After Screen Lift up 1000mm

Power

AC Power

Transport Package

Wooden Box

Specification

LED display with trailer

Trademark

Origin

Zhejiang, China

HS Code

85318090

Production Capacity

50PCS/Month

Product Description

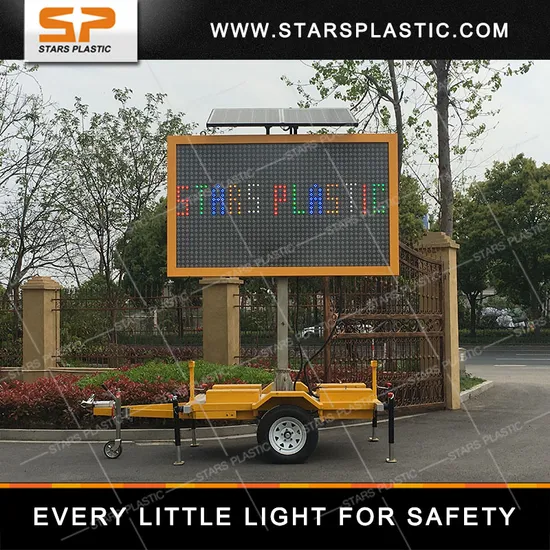

PORTABLE VARIABLE MESSAGE SIGN FOR TRAFFIC SAFETY
Variable Message Signs (VMS) provide information to the public on a large, legible LED display.
VMS can present messages as text, graphics, or a combination of both.
Users can create custom messages easily by using wired LED controller or wireless computer / pad / phone to login in web system.
Full matrix VMS
FIVE-COLOR MESSAGE SIGN
Amber & Red & Green & Blue & White
Display size:2400x1400MM
Overall size:2600x1500MM
48 x 28 Full Matrix Display
Powder Coated Aluminium Enclosure
Anti-UV Suface * IP54 rating
Non-Glare UV polycarbonate screen
32 LEVELS Auto dimming photocells
7" LCD TOUCH SCREEN CONTROL included
VMS Trailer Specification

Full length of trailer		210020002400mm
Display Size		2479x1480mm (customized)
Control box		Lockable, 57L X 36W X 36D CM
Two Lockable Battery box	Quantity	2 batteries( 12V 200AH each) Size of each Battery:516253212mm
Two Lockable Battery box	Weight	51kgs each
Solar Panel Frame	Movements	1)Able to rotate 360 with mast and lay flat for travel; 2)Tilting a little
	Quantity	2*187.5W(1330x840x35mm)
	Weight	27KGS
	Voltage	20V
Tires		Lockable 185R14LT 102/100Q, steel-belted trailer tires
Lift options		Actuator Hydraulic
Legs		4 legs adjustable to different level height and angles for uneven ground
Others	Tow Bar
	Jockey Wheel	Included
	Mast	Galvanized
	Treatment	Powder coated
	Forklift holes	Included
	Trailer light	Included
