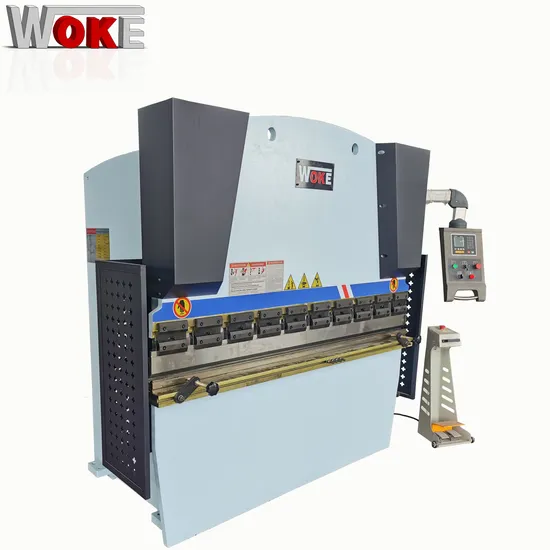

Economic Hydraulic CNC Press Brake Bending Machine High Quality 40t/2000mm

US$5,000.00-10,000.00 1 Piece (MOQ)

Basic Info.

Condition
New
Certification
ISO 9001:2008, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Press Brake
Control System
Estun E21 Nc Controller
Application
All Sheet Metal Bending
Power Supply
380/440/220/415 Customized
Precision
1 Degree on One Meter
Hydraulic System
Rexroth
Color
Customized
Keyword
40tons Press Brake
Bending Capacity
6mm
Nominal Pressure
40tons
Slider Travel
150mm
Bending Thickness
6mm Steel
Transport Package
Nude Packing, Steel Pallet
Specification
9CBM
Trademark
WOKE
Origin
Nantong, Jiangsu, China
HS Code
8462299000
Production Capacity
40PCS/Month

Product Description


No Model Nominal pressure Worktable length Distance between column Throat Depth Stroke Opening Motor Dimension
Ton mm mm mm mm mm kw mm
1 40T/1600 40 1600 1280 250 120 325 4 1850×1300×2100
2 40T/2000 40 2000 1550 250 120 325 4 2250×1300×2100
3 40T/2500 40 2500 2050 250 120 325 4 2750×1300×2100
4 63T/2500 63 2500 2050 250 120 360 5.5 2750×1350×2230
5 63T/3200 63 3200 2600 250 120 360 5.5 3450×1350×2230
6 80T/2500 80 2500 2050 320 120 380 7.5 2750×1400×2350
7 80T/3200 80 3200 2600 320 120 380 7.5 3450×1400×2350
8 100T/2500 100 2500 2050 320 120 380 7.5 2750×1450×2380
9 100T/3200 100 3200 2600 320 120 380 7.5 3450×1450×2380
10 100T/4000 100 4000 3200 320 120 380 7.5 4250×1450×2380
11 125T/2500 125 2500 2050 320 120 380 7.5 2750×1450×2380
12 125T/3200 125 3200 2600 320 120 380 7.5 3750×1450×2380
13 125T/4000 125 4000 3200 320 120 380 7.5 4250×1450×2380
14 160T/3200 160 3200 2600 320 180 450 11 3450×1700×2600
15 160T/4000 160 4000 3200 320 180 450 11 4250×1700×2600
16 200T/3200 200 3200 2600 320 200 470 15 3450×1850×2860
17 200T/4000 200 4000 3200 320 200 470 15 4250×1870×2950
18 250T/3200 250 3200 2600 400 250 530 18.5 3450×1920×3050
19 250T/4000 250 4000 3200 400 250 530 18.5 4250×1950×3150
20 300T/3200 300 3200 2600 400 250 560 22 3450×2200×3130
21 300T/4000 300 4000 3200 400 250 560 22 4250×2250×3320
22 300T/6000 300 6000 4700 400 250 560 22 6100×2250×4250
23 400T/3200 400 3200 3200 400 300 640 30 3200×2280×3250
24 400T/4000 400 4000 3200 400 300 640 30 4000×2300×3600
25 400T/6000 400 6000 4700 400 300 640 30 6000×2350×4650
26 500T/4000 500 4000 3200 500 310 640 37 4000×2480×4330
27 500T/6000 500 6000 4700 400 310 640 37 6000×2450×4700
28 600T/6000 600 6000 4700 460 310 650 45 6000×2700×5710
