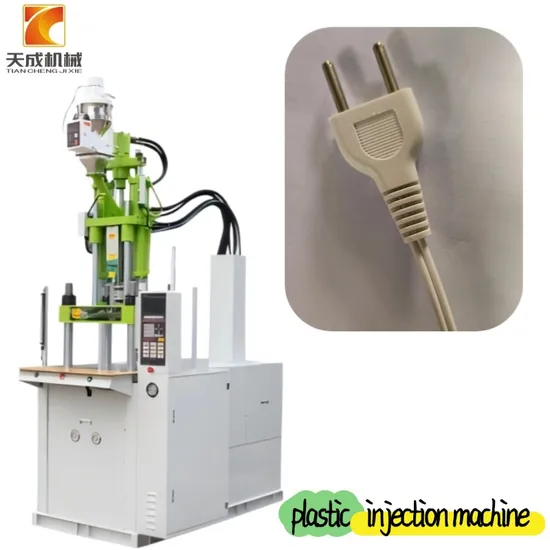

USB Cable Plug Connector Molding Making Machine / Plastic Injection Molding Machine
| Brand Name | TianCheng | | Style | VERTICAL |
| Condition | New | | Model NO. | TC-250-P |
| Screw Diameter (MM) | 26--30 | | Max.Hydraulic Pressure(Kg/cm3) | 140 |
| Maximum injection Pressure (Kg/cm2) | 1325--996 | | Pump Output (L/min) | 30 |
| Theoretical Shot Volume (Cm3) | 55--74 | | Oil Tank Capacity (L) | 116 |
| Maximum Shot Weight (G/oz) | 50/1.8--66/2.5 | | Cooling Water Consumption(L/H) | 600-800 |
| Injection Rate (Cm3/sec) | 45--59 | | Electric Power (KW) | 4 |
| Screw Speed (R/Min) | 0--150 | | Total capacitance (KW) | 2 |
| Screw Rate (MM) | 106 | | Total Wattage (KW) | 6 |
| Nozzle Retraction Stroke (MM) | 150 | | Machine Specification(M) | 1.5*1.05*2.35 |
| Clamping Force (Ton) | 25 | | Weight of Machine (KG) | 1100 |
| Opening Force (Ton) | 7 | | Plastic Processed | PP, ABS, FRPP/PVC, PE, ABS/PP, PE/PP |
| Platen Size (MM) | 500*340 | | After-sales Service Provided
| Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support |
| Distance Between Tie-Bere (MM) | 370*200 | | After Warranty Service
| Video technical support, Online support, Spare parts, Field maintenance and repair service |
| minimum Mold Thickness (MM) | 60/120 | | Warranty | 1 year |
| Opening Stroke (MM) | 200 | | Applicable Industries | Manufacturing Plant, Construction works , Energy & Mining, Other |
| Max-Distance opening mold (MM) | 260/320 | | | |
| Max.Mold Size | 350*280 | | | |
| Ejector Force (Ton) | 1.3 | | | |
| Ejector Stoke (MM) | 35 | | | |
| Q1: Are you a trading company or a manufacturer? |
| A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements |
| Q2: What's your warranty for the machine? |
| A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance. |
| Q3: What's your Delivery Time? |
| A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season. |
| Q4: Why choose TianCheng Machinery Co., Ltd.? |
| A4: "Tiancheng Machinery, we sincere, you succeed!" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service. |
