CE Certificate High Quality Zm Series 1-15 Tons Log Trailer with Crane

Product Description

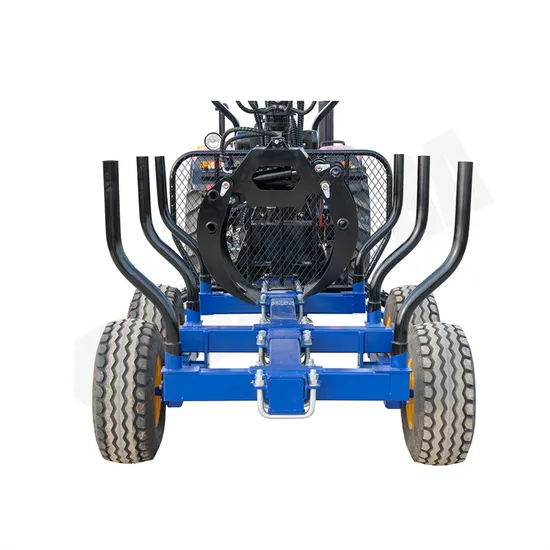

Timber Loader trailer with Crane
Product Description
DESCRIPTION:
ZM Series 3 ton timber trailer with crane, atv log trailer, wood trailer is used in loading, unloading, transporting, stacking or unstacking of wood, grass and reed, bamboo etc. Hydraulic transmission is used, featured with compact structure, flexibility, convenient operation, quick mounting and dismounting. It used hydraulic oil commonly with tractor. The hydraulic elements are highly standardized, convenient for operation and maintenance.
FEATURES:
1. Matching Tractors, ATV or truck
2. CE Certificate
3. PTO, Gas/Diesel engine available
4. Air Brake or wide tyre offered as options
5. Stable Hydraulic System
6. Flexibility and convenient operation
7. Quick mounting and dismounting
8. The 24-hour online servie/sell
Specification:

Model	ZM1002	ZM3004	ZM5004		ZM8006	ZM10006	ZM12006
Matching Power	10-25 hp	20-50 hp	30-60 hp		50-80 hp	70-100 hp	80 -140 hp
Machine Weight (kg)	1010	1790	2040		2750	3000	3200
Trailer Section:
Trailer Model:	TR10	TR30	TR50		TR80	TR100	TR120
N/W of Trailer (kg)	420	690	940		1450	1700	1900
Rated Loading Capacity	1T	3T	5T		8T	10T	12T
Loading Area	0.85 m2	1 m2	1.6 m2		2.2 m2	2.5 m2	2.8 m2
Total Length of Trailer	3.6 m	5.1 m	5.1 m		5.9 m	6.3 m	6.3 m
Trailer Loading Length	2.0 m	3.1 m	3.1 m		3.8 m	4.3 m	4.3 m
Total Width of Trailer	1.4 m	1.6 m	1.8 m		2.2 m	2.3 m	2.5 m
Assistant Hydraulic Steering	No	Standard
Dia.of Traction Hole	33 mm	38 mm
Tire Model	6.00 - 13	7.00 - 16	8.25 - 16		400/60-15.5
Crane Section:
Model	CR02	CR04			CR06
Weight of Crane (kg)	590	1100			1300
Max. Arm Reach	3.5 m	4.3 m			6 m
Lifing Capacity/Arm Reach (kg/m)	400/2,300/3,200/3.5	900/2, 760/3, 500/4, 450/4.3			990/2,760/3,500/4,340/5,240/6
Rotating Angle	370°	400°			400°
Grab Section:
Grab model	TG019	TG024			TG029
Weight of Grab(kg)	90	130			160
Max. Grab Opening Width(mm)	1140	1300			1430
Grabbing Dia. of Logs(mm)	80 - 420	70 - 485			75~530
Power (option):				PTO/ Gasoline Engine/ Diesel Engine

Detailed Photos
Company Profile
Shandong Sunco AET Co., Ltd. is a holding company of Shandong Academy of Agricultural
Machinery Sciences. It was established on the basis of Academy's Technology Centre and Trail Production
Factory in 2001, and was formally registered in 2009.
Main products of our company including: Front end loader,Backhoe,
Snow removing machineries( like Snow blade, Snow sweeper, Snow blower etc), Forestry machineries( like Log trailerwith crane, Log splitter, Wood chipper etc),
Grass mower, Dozer blade and Compost turner etc.
Our Advantages
OUR ADVANTAGES:
1. Strong Technical Support:
More than 80 professional and technical personnels;
Top universities and institutes cooperator;
A subordinate to Shandong Agricultural Machinery Research Institute
2. Top Quality Assurance:
Strict control and selection of materials;
Completely self manufactured and installed;
Advanced equipments andfirst-classproductiontechnology;
Soundmanagementsystemandsolideconomicstrength
3. Advanced Testing Measures:
Exclusive R&D, testing center;
Capable of undertaking national research projects;
Exclusive professional platform
4. Sound after-sale system, sincere and all-aspect service
5. OEM service acceptable, customized products available based on strong technical teams.
Packaging & Shipping
After Sales Service
Our Services:
I. Strong Technical Support:
1. More than 80 professional and technical personnels;
2. Top universities and institutes cooperator;
3. A subordinate to Shandong Agricultural Machinery Research Institute
II. Top Quality Assurance:
1. Strict control and selection of materials;
2. Completely self manufactured and installed;
3. Advanced equipments and first-class production technology;
4. Sound management system and solid economic strength

III. Advanced Testing Measures:
1. Exclusive R&D, testing center;
2. Capable of undertaking national research projects;
3. Exclusive professional platform
FAQ
1.Q: Full price list for these products

A:If you need the price list for these products, please notify the product model so that i can quote you accordingly.Please understand we have a very wide product range, we don't usually offer full products price list.

2. Q: Main market

A:Europe,Canada and Chile.

3. Q: Export quantity

A:20-30 units of 40ft container per month.

4. Q: Business terms

A:Shipment time: 30 days after your payment

Shipment: By sea

Loading port: Qingdao port, China

Destination port: ...To be advised

Payment: By bank transfer

Warranty: 1 year

5. RE: CE

A: Most of our products are certified by CE.

6.Q:Sample test

A:Now our agri machines are exported to tractor manufactures, agri machine dealers, owners, etc. We can accept MOQ of 1 set as sample. Buyer(s) will pay for the product and freight.

Any more questions pls feel free to contact Vivi Yang.

---
