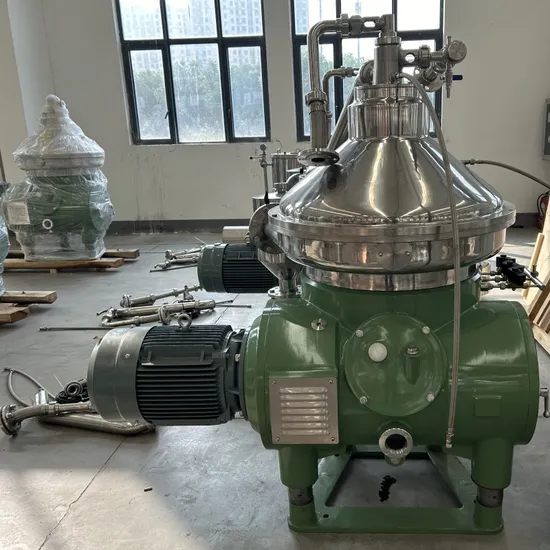

Chlorella Spirulina 2-Phase Disc Centrifuge Algae Biomass Centrifuge

Product Description

Product Application High efficiency fat centrifuge separator for skim milk factoryProduct Description Separator Application With the gradual increasing in people's living, the dairy and beverage consumer market also continues to expand, as a result the people's attitudes of consumer also increase strongly from "drink milk" to "drink good milk". So the advanced equipments are very imprtant in the production process. The centrifugal separator from Reyes has the special design for the centripetal pump and inlet/outlet port will create a soft separation environment for the material to ensure the active ingredient in the material is not destrooyed and made the nutritional value and freshness as well as original flavor keep well.
Milk cream separator is mainly used in milk processing industry, continually separate out cream and defatted milk from pure milk, at the same time remove the impurities and sediments, and it also can realize milk standardization according to fat content.
Reyes Separator enable separate the extreme tiny ( as less than 1mm) solid particles which dispersed in suspensions from the liquid phase out.

1 Warm milk separation 2 Cold milk separation 3 Whey separation 4 Buttermilk separation 5 Milk and whey clarification 6 Milk standardisation Separator Model list :

DHN model is applied to dairy clarification
Model	Capacity L/H	Inlet Pressure	Outlet pressure	Weight	Dimension mm
DHN360	2000-5000	0.05 Mpa	0.1-0.35 Mpa	1200 kg	1530*1150*1500
DHN470	5000-10000	0.05 Mpa	0.1-0.4 Mpa	1600 kg	1800*1200*1750
DHN550	10000-20000	0.05 Mpa	0.1-0.4 Mpa	2300 kg	1950*1550*1960
DHN616	25000-35000	0.1 Mpa	0.3 Mpa	3000 kg	2185*1728*2082

DHNZ model is applied to dairy skimming
Model	Capacity L/H	Inlet pressure	Outlet pressure	Weight	Dimension
DHNZ204	500-1000	0.05 Mpa	0.1-0.2 Mpa	520 kg	810*850*1350
DHNZ360	1000-3000	0.05 Mpa	0.1-0.2Mpa	1200 kg	1530*1150*1500
DHNZ470	3000-7000	0.05 Mpa	0.1-0.2 Mpa	1600 kg	1800*1200*2030
DHNZ550	5000-10000	0.05 Mpa	0.1-0.2Mpa	2300 kg	1950*1550*1960

Separator working principle for dairy skimming The disc separator is specially used for the two-phase and three-phase separation. The two-phase separation is to separate the s uspended solid from liquid or separate two liquids which have the different specific gravity and are immiscible. The three-phase separation is to separate the two immiscible liquid phases and a phase of solid at the same time .
Separator working principle for dairy clarification Clarification mean two phase separation. The materials are feeding into the heart parts of this machine, the inside of the bowl. Under the action of strong centrifugal force, the impurity will be removed from the raw material then get the clean milk.

Separator advantages 1. Continuous feeding
2. High separation factor
3. Automatic residue discharging
4. CIP
5. Hydraulic coupling driving with longer service lift
6. PLC system automatic control
7. Good milk skimming performance
8. High efficiency
9. Lower engergy consumption
10. Soft feeding or discharging of the inelet and outlet
Separator Application 1. Hot milk separation
2. Cold milk separation
3. Whey protein separation
4. Buttermilk separation
5. Dairy whey clarification
6. Disinfection of dairy products
7. Casein
8 . Syrup clarification
9. Vegetable juice clarification
10 Tea drinks, coffee, Beer and other liquid clarification
Product competitive advantage:
1, High rotating speed
2, Operating stability
3, Completely sealed up of the inlet and outlet system
4, Lower noise
5, The professional designed centripetal pump system has many advantages such as stability outlet pressure, large regulating sphere, easily operating and so on.
6, This special design separator has the full automatic control box which used for safety protection and equips and also been equipped with advanced automatic vibration tester which can view vibrating value at any time. We can make separating and discharging to the best affection from regulating separation parameter directly at the screen.

Quality guarantee
1.Separator manufactured in compliance with quality guaranteen system of ISO9001-2000.
2.The Seller shall guarantee that the separator manufactured in compliance with quality guarantee standard of JB/T8103-2005.
3.The guarantee period shall be 1 year counted from the date on which the commodity arrives at the port of destination.

Introduction of Company:

SHENZHOU Group has set-up a 1st class in-house laboratory for chemical composition analysis, metallographic analysis, spectrum analysis, performance analysis, radiographic inspection, magnetism inspection, ultra-sonic inspection and etc. This is to imply with the latest advance instrumentations and rigorous working attitude to ensure every part of product is stable and reliable.

---
