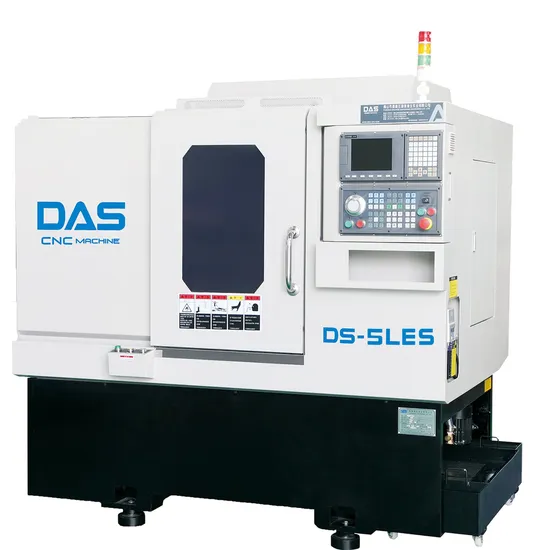

Ds-5le Horizontal Automatic Cutting CNC Lathe Machine for Manufacturing Plant

Product Description

DAS Long Travel Torno CNC Slant Bed cnc lathe Machine with live tooling(Power head) Product Description
- Machine tool control system uses Taiwan SYNTEC 6TA-T3S system. Other company's numeral control system can also be used when user requires so.

- Machine body is cast in one piece with resin bonded sand, so it features strong vibration resistance and less deformation. The lathe bed tilts by 45° and the inclined placement of lathe carriage and tool holder will result in easy operation and chip removal. The machine tool has pleasant design appearance and less space occupation.

- Equipped with computer automatic lubrication system for the linear guide and ball screw forced lubrication, ensure that the guide rail and the service life of screw.

1. Super rigidity The body structure is one piece, with a solid base and a downfeed centre, 45° saddle design for good vibration damping and reduced deformation, providing a very stable base for the head and turret, 45° sloping bed structure for easy loading and unloading of steel and smoother chip removal.
2. Modern and popular control components The DAS machine is available with the optional FAUNC 0iTF control package and Siemens 828D control package, 8.4' display, 10.4' display, additional interfaces, etc.
3. Superb price/performance ratio The machine of German origin has the best components, such as SAUTER turret and NSK bearings, which guarantee the high precision performance of the machine series. At the same time we offer competitive prices, making the machine series superbly cost effective.
4. User-friendly design Minimal space occupation, but mostly in line with the actual working area, full protective cover, humanized aesthetic design, stainless steel telescope cover, providing a safe and clean working environment and more durable.
5. Rich choice Electric turret, servo turret, power turret, upgraded spindle power, upgraded spindle torque, upgraded cylinder and chuck inner diameter, drawer type cooling tank, tool probe, oil mist remover, etc. for customers to choose from.
6. High efficiency assembly line operation (optional) Thanks to the advanced truss drive, multiple machines can be combined together to complete a task, greatly reducing the drive time between each process and increasing efficiency.

Name	DS-5LE	DS-6LE
Adjacent tool change time (s)	0.3	0.3
Tool change style	Random	Random
Square knife knife holder (mm)	20X20	20X20
Round hole knife holder (mm)	φ20	φ20
With chuck size	5 Inch	6 Inch
Spindle speed (r/min)	1-4500	1-4500
Spindle bore (mm)	φ46	φ56
Center height (mm)	56	56
The maximum diameter of rotation (mm)	380	380
Spindle motor power (KW)	5.5	7.5
Minimum system Resolution	0.001	0.001
X/Z Axis stroke (mm)	1040/250	1040/250
X/Z axis fast moving speed (m/min)	30	30
X/Z axis Repetitive positioning accuracy (mm)	±0.003	±0.003
Taper (mm)	≤0.003/100	≤0.003/100
Card position size (mm)	≤0.003	≤0.003
X servo-motor (KW)	1.3	1.3
Z servo-motor (KW)	1.3	1.3
Hydraulic station (KW)	0.75	0.75
Water tank motor power (KW)	150W	150W
Cooling water tank capacity (L)	60	60
Bar feeder center height (mm)	1120	1120
Weight (KG)	2800	2850
Size (L*W*H mm)	2250x1500x1950	2250x1500x1950
Power (KW)	10	12

Good Feedback
Foshan Shunde Guoqiang Daosheng Industrial Co., Ltd. is located in Chencun, the important machinery town in Shunde District,Foshan. Sticking to the human-centering management, we are in possession of a group of highly competent technical personnel, a market oriented experienced sales team. In the gesture of sincere cooperation, we strive to establish a promise keeping and quality .Our major products include CNC series gang tool type lathes , turret lathes, take heart-type lathes and milling-type lathes,featuring space saving, low cost and diversified arrangement etc. They can also meet the demand for precise processing of different products. The products find widespread application in the manufacture of cars, motorcycles and accessories thereof,electronic industry, optical instruments, clocks and watches as well as special motors etc.We have precise lathe equipment, complete quality guarantee system, prompt goods supply as well as perfect after-sales service,which ensure us
the first consideration when you purchase high-precision machine tools.

---
