Telecontrol Industrial Tower Crane Hoist 2 Motions Two 5-Steps Joystick Wireless Radio Remote Control F24-60 for Concrep Pump Truck

Product Description

Product Description

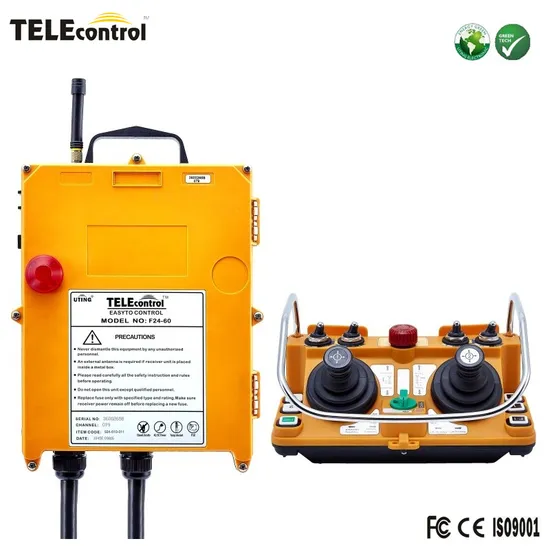

Telecontrol F24-60 industrial tower crane two 5-steps joystick wireless radio remote control
Note:
1. The standard configuration includes 1 transmiter and 1 receiver (1TX+1RX), and 2TX+1RX is available too, or even more than 2 transmitters can work with 1 receiver, or 1TX+2RX
2. There are different working voltage to choose, and adopts the wide range volgae:AC/DC24-48V or 100-440V
DC12V can be customized.UTE electric offers a wide range &consistent of radio remote controls for traveling cranes, hoists, monorails, jib cranes and many more industrial applications. overhead bridge cranes, monorail hoists, motorized jib cranes or other pieces of industrial equipment.
The radio remote control units have various versions of transmitters with one-step push buttons (single speed), two-step buttons (two speed).
Features:
More powerful, Intelligent, Reliable and operational6 single speed buttons, 4 three-position or 2 position rotating switch, stop,start and spare button.Dual five-step joysticks in two montions with 10 million times of mechanical life and pure proportionSafety switch key is to prevent from unauthorized userProgramable the button function by computer interface(software&cable is optional)Glass-fiber PA for shock resistanceDouble switching power supply design and more stable and efficientVersatile power supply options (Wide range working voltage input: AC/DC 24-48V or AC/DC100-440V12VDC is available)Operating distance up to 100 meters, extendable with extra antenna for more operation rangeHigh level Enclosure protection class IP 65Temperature range - 40 ° C~ + 85° CTransmitter with working power led indicatorTransmitter with housing for extra shock resistance and shoulder strap cordStandard AA alkaline batteries(not included)Low power consumption transmitterWith battery voltage warning device, the power supply is cut off during low powerOver 4.3 billions unique ID code availableHamming codeEnhanced watch-dog circuit The series S/No. and production date are laser making of anti-counterfeitMicrosoft Windows based software for easy customize configurationTest certificate of every single product with FCC and CE certificateCustom labeling availableInstalled with proportional modules for analog signal output(optional)It is suitable for double hooks, multi-speed ,multi-function, and proportion crane an industrial remote controls with complicated functionProduct Parameters

Transmitter(TX) parameters:F24-60-TX
Material	Glass-Fiber PA
Enclosure protection class	IP65
Frequency range	UHF:425-446MHz
Receiver sensitivity	-110dBm
Transmitter power supply	4 AA alkaline batteries(not included)
Safety Code	32 bits(4.3billion)
Temperature range	-40ºC~+85ºC
Control distance	up to 100 meters
Receiver(RX) parameters:F24-60-RXC
Material	Glass-fiber reinforced Nylon
Enclosure protection class	IP65
Frequency range	UHF:425~446MHz
Transmitter power	≤10dBm
Receiver power supply	AC/DC24-48V/100-440V
Safety Code	32 bits(4.3billion)
Temperature range	-40ºC~+85ºC
Control distance	30 to 50 meters

Packing list:
Note: Batteries usually are not provided as it is forbidden to ship by air or by sea.Standard configuration:
1X transmitter
1X receiver
1X Belt
1X receiver antenna
1X operation manual Typical Applications
Application:
Wireless remote controls are widely applied for lifting equipment, construction machinery, cargo loading/unloading machines, -Concrete Pumps, PLC Integration, Industrial automation control, Tower Cranes, Tow trucks , Vehicle,Mobile Equipment, Conveyor Control liftswater supply system, data transmission, door control, theiron-smelting and steel-making, the automobile manufacturing, paper-making and chemical industry, steel structure processing, galvanization, shipbuilding, railroad, bridge, tunnel construction and other equipment and sites which can be worked by radio controls.
