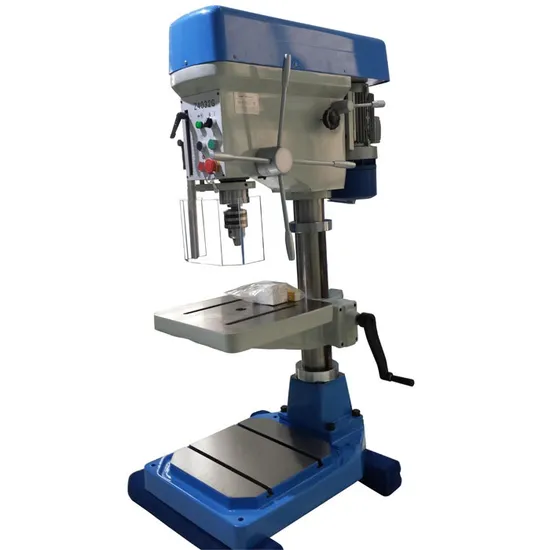

China Automatic Feeding Strong Bench Drilling Machine (Z4132G)

US$940.00
1-2 Pieces
US$550.00
3+ Pieces

Basic Info.

Model NO.
Z4032G
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
Electric
Number of Shaft
0
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max. Drilling Capacity (in Ms)
32mm
Max. Tapping Capacity (in Ms)
M24
Name
Strong Bench Drilling Machine(Z4032g)
Column Diameter
100mm
Spindle Travel
150mm
Table Size
380mm X 400mm
Base Size
645mm X 470mm
Motor Power
1.1kw (6 Poles)
Packing Size
1039X644X1512mm
Approx.Net Weight
230kgs
Transport Package
Plyw/Case
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
Shandong
HS Code
8459290000
Production Capacity
800PCS/Month

Product Description

Automatic feeding Strong Bench Drilling (Z4032G)
Product Description
Features:
1.Worktable can rise and down by rack/handle, 360° rotation, easy to operate and mechanical advantage.
2.Multi-functional, can use for drilling and tapping.
3.Belt adjust mechanism(by handle), easy and efficient.
4.Long spindle travel, wide machining range.
5.Spindle head, worktable, column and base use high quality casting processed by aging treatment, stability and durable in use.
6.Spindle, spline sleeve, gear shaft processed by heat treatment and hardened.
7.Reasonable structure, high rigidity, high strength.
8.With LED light, whole steel feeding handle, thicken base, more tronger.
9.These optional accessories can be ordered:
belt cover with door limit switch, multi-spindle attachment, DRO, Higher column etc.

Product Parameters


MODEL
Z4016G Z4020G Z4032G
Max. drilling capacity (in MS) 16mm 20mm 32mm
Max. tapping capacity (In MS) M10 M16 M24
Column Diameter: 70mm 85mm 100mm
Spindle travel 100mm 135mm 150mm
Distance from spindle to column 193mm 260mm 265mm
Distance from spindle to worktable 330mm 366mm 390mm
Distance from spindle to base 613mm 678mm 745mm
Spindle taper MT2 MT2 MT3
No. of Speeds , (RPM Range) 5 , (480~4100) 5 , (280~1875) 5 , (280~1875)
Table size 265mm x 285mm 300mm x 320mm 380mm x 400mm
Base Size: 360mm x 480mm 376mm x 566mm 645mm x 470mm
Overall height 1130mm 1245mm 1370mm
Motor power 0.75KW (4 poles) 0.75KW (6 poles) 1.1KW (6 poles)
uni-techmachinery.en.made-in-china.com weight 131,50kg 179kg 230kg
Packing size 850x540x1282mm 990x564x1402mm 1039x644x1512mm

Standard accessories:
--Drill chuck
--Chuck arbor
--Tool dismounting spanner
--Belt
--U-type chuck safety guard
--LED work light
--Steel material feed handle
Optional accessories:
--Vice
--DRO
--Higher column
--Auto-feeding
--Multi-spindles
