2L Automactic Plastic Bottle Blow Molding Machine

Product Description

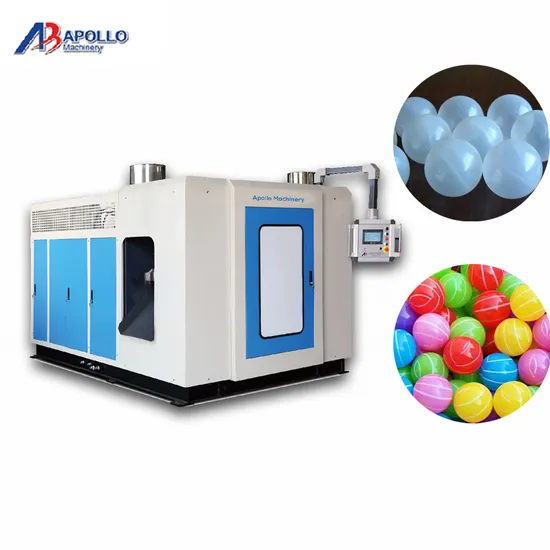

2L Automactic Plastic Bottle Blow Molding Machine (ABLB45II)
ABLB45 full automatic extrusion blow molding machine was specially designed for making plastic water bottles,medical bottles,oil bottles,plastic balls ,suction tubes and other small plastic containers not over 2L.
The features of this machine:
(1)It is suitable for producing PE,HDPE,PP, PVC,PETG,PS so on,plastic containers and bottles in all shapes are available,the max.product volume is up to 2L.
(2)Single station double die design,very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low investment,high efficiency,quick and safe operation,easy for maintenance.
Suitable for making:
Technical Parameters: ( ABLB45 )

Max. Product volume	2L
Out put capacity	500~600pcs/h
Screw diameter	45mm
Screw L/D ratio	24:1 L/D
Screw drive power	10 KW
Screw heating capacity	2.6 KW
No.of heating zone	3 zones
Output of HDPE	35 KG/H
Oil pump drive power	4.8 KW
Clamping force	32KN
Max.size of mold	80-350mm
Mold stroke	250 X 320mm
Max.die diameter	80mm
Blowing pressure	0.6 mpa
Air Volume	0.4M³/MIN
Cooling water pressure	0.3mpa
Water consumption	30 L/MIN
Size of Machine	2.6x1.4x2.2m
Weight of machine	2.8 ton

---
