High Efficiency Toner Cartridges Treatment for Recycling

Product Description

High efficiency toner Cartidges treatment for recycling
The stable gowth of modern office equipment has also brought the corresponding toner cartidge, toner drum and other consumables at a rate of 30% per year. These non-degradable consumable materials are discarded as garbage,which not only causes resource waste,but also increasingly threatens people's living environment. Toner and toner cartidges carry on or spill carbon powder particles are extremely small, not only pollute the environment, but also harmful to human respiratory system.
The toner cartridge consists of plastic,iron, magnetic, aluminumss, copper, soft material and toner, usually with residual toner accounting for 10 - 20% of toner weight, Plastic accounts for 41 % of the weight of waste gas tone. Recycling of waste toner cartridge is to separate, recycle and utilize the ferromagnetism, nonferrous metals, precious metals and organic materials,stabilitze or remove harmful components by means of mechanical and physical methods, and reduce environmental pollution.
Application

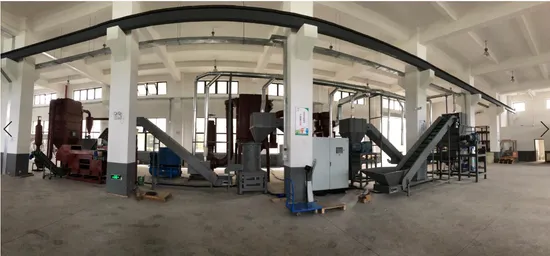

How to process
1. Feeding the toner cartridge to the first stage shredder with variable frequency feed conveyor belt, double shafts and double motor drive can meet the requirements of continuous shredding of materials, after the shredding output size is 30mm*150mm.
2. The roller screen is used to shake and screen out materials and toner. The toner duster collection can remove 95% of toner.
3. Drive the conveyor belt to send the toner cartridge fragments to the secondary shredder , double shafts and double motor drive can meet the requirements of materials continuous grinding and make the output size is 30mm*100mm, and the sealed suction pipe continues to remove the remaining toner;
4. The conveyor belt shall send the toner cartridge fragments to the three-stage compound crusher with the output size of 20mm*80mm, and the sealed dust suction pipe shall clear up to 99.9% carbon powder and dust;
5. Iron removal screen separates iron and delivers it to the discharge bin;
6. The eddy-current sorting system separates alumium and plastics and delivers them to their respective discharge bins;
Technical Data
After shredding, Separated the aluminum,metal,plastic and toner.

---
