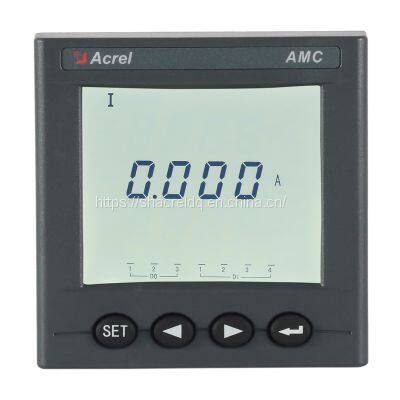

AMC72L-DV/C Single-phase AC Digital Ammeter
AMC series programmable intelligent meters, adopting AC sampling technology, can directly or indirectly measure electric voltage and current of single phase or three phase grid. It can be used for local display, and connecting industrial control device to form measuring control system. This series of meters have RS-485 port, adopt Modbus-RTU protocol. Analog output, alarm output, switching input/ output can be selected. Based on different request, by pressing the keys, parameters of ratio, alarm, communication etc. can be modified.
● Measurement: 1-circuit DC Voltage
● Accuracy: 0.5%
● Rated Current: 0~10V DC (via Transducer); 300V or 1000V DC (direct connect)
● Power Supply: 85~265V AC/DC
● Communication: RS485 (MODBUS-RTU)
● Alarm Output: Low&High Current Alarm
● Analog Output: 4~20mA DC
● DI/DO Function: 2-channel DI&2-channel DO
● Standard&Certificate: CE Certificates
Function & Parameter
Parameter
| Description&Value
|
Input
| Rated Current
| AC Current Input: -/5A AC or -/1A AC (via CT)
|
Overload
| Current input overload:1.2 times rated value(continuous); 10 times rated value /1 second
|
Frequency
| 45~65Hz
|
Power Consumption
| Power consumption of each current input circuit is less than 0.5VA
|
Accuracy
| Current Measuring
| 0.5%
|
Power Supply
| Voltage Range
| AC/DC 85-265V
|
Power Consumption
| | Insulation resistance
| ≥ 100MΩ
|
Power frequency withstand voltage
| Between power supply set of terminals and signal input,output set of terminals 2kV/1min (RMS) Between the shell and all set of terminals(except the set of terminals reference voltage less than 40V) AC 4kV
|
Dimension & Installation
Outline unit ： mm
| faceplate size
| housing size
| cutout size
|
width
| height
| width
| height
| depth
| width
| height
|
72 square
| 75
| 75
| 66.5
| 66.5
| 94.3
| 67
| 67
|
96 square
| 96
| 96
| 90
| 90
| 77.8
| 92
| 92
|
AC Current Signal (5A or 1A AC) Input via -/5A AC or -/1A AC CTs
