Hot Sale LDPE LLDPE HDPE Agriculture Packaging Film Plastic Granulating Recycling Machine for Scrap PP PE Film Pelletizing Line with Degassing Extruder

Product Description

Hot Sale LDPE LLDPE HDPE Agriculture Packaging Film Plastic Granulating Recycling Machine for Scrap PP PE Film Pelletizing Line with Degassing Extruder
Product Description
Application:
PE, PP film, Silk, Flakes (≤0.5mm), Bags, etc.
Note, our ZL series compactor granulator can be pull strip cutting method, or water ring cutting method for option

Consist of:

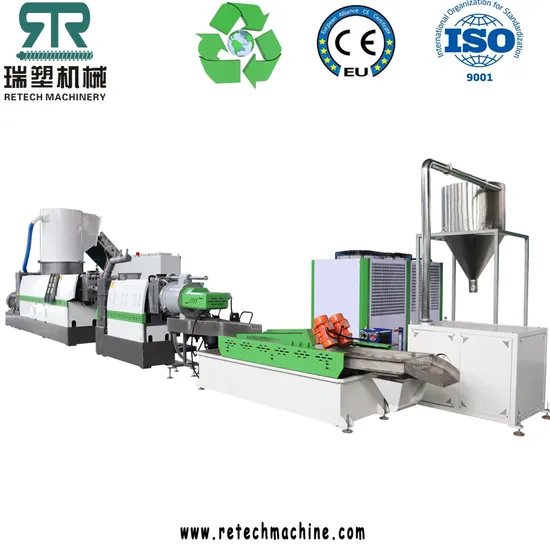

Belt conveyor(metal detector) → Compactor → Main extruder(vacuum degassing system) → Hydraulic screen changer → Sub- extruder → Hydraulic screen changer → Water ring cutting system →Dewatering machine → Air blowing system → Storage hopper → Control cabinet
Detailed Photos
Belt conveyor
Control method: frequency control
(Metal detector for selection)

Compactor
Rotation knives/fix knives inside
Motor power: 45/55/75/90 KW
Cutter material: D2
Main extruder
Screw diameter: 85/100/130/160/180mm models for option
Aluminum heater
Screw/barrel material: 38CrMoAl, Nitriding processing treatment,0.5-0.7 depth.
(With vacuum degassing zone)
Hydraulic screen changer
Motor power:2.2/3KW
Special design board
(non-stopping screen change, no leak)
Water-ring cutting system
Motor power: 2.2/3kw
Frequency speed control
(we have vertical/ horizontal two cutting method for selection)
Centrifugal dryer/screen vibrator

Made of SUS304 stainless steel

Control cabinet
Word famous brand electric components
(PLC control for option)
Product Parameters

Model	Diameter of screw	PE capacity	PP capacity
RCDJ-85	Φ85mm	150-200kg/h	100-150kg/h
RCSJ-85/100	Φ85/100mm	150-200kg/h	100-150kg/h
RCDJ-100	Φ100mm	280-350kg/h	250-300kg/h
RCSJ-100/120	Φ100/120mm	280-350kg/h	250-300kg/h
RCDJ-130	Φ130mm	480-550kg/h	400-500kg/h
RCSJ-130/150	Φ130/150mm	480-550kg/h	400-500kg/h
RCDJ-160	Φ160mm	650-800kg/h	600-750kg/h
RCSJ-160/180	Φ160/180mm	650-800kg/h	600-750kg/h
RCDJ-180	Φ180mm	800-1200kg/h	750-1000kg/h
RCSJ-180/180	Φ180/200mm	800-1200kg/h	750-1000kg/h
