Biomass Cotton Stalk Pellet Machine Peanut Shell Pellet Mill Customizable

Product Description

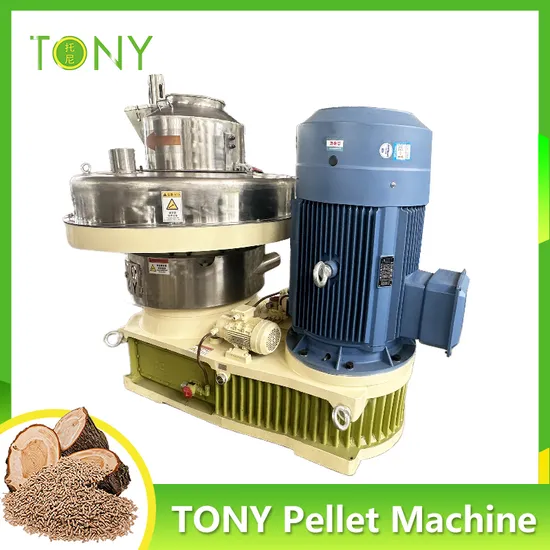

TONY Pellet Machine TYJ551-III-90KW With Capacity 1-1.5Ton/Hour
Product Description
TONY biomass pellet machine mainly focuses on vertical ring die series models (such as TYJ-551/TYJ-760/TYJ-860), which adopts alloy steel press roller and ring die design, and is suitable for compression molding of wood chips, straw, rice husks, efb, sugar cane residue, leaves and other biomass raw materials. Product advantages include: increase the pressure wheel design to enhance bearing bearing capacity and reduce heat conduction, extend service life; Multi-pressure wheel uniform structure to improve production efficiency; Modular mold support round rod, particle and other forms of switching. In addition, the gearbox is equipped with an automatic lubrication system to ensure stable operation at low temperatures, high particle density, excellent combustion value and low ash content.
Working Principle
The working principle of the TONY brand 304 Stainless Steel Pellet Machine is mainly to rely on the pressure and friction between the template and the mold to gradually shape the raw materials and finally cut them into pellet products.
Feeding: The biomass raw materials are fed through the feeder, and after pre-treatment such as crushing and mixing, they are sent to the hopper of the 304 Stainless Steel Pellet Machine.
Extrusion: The raw materials are subjected to the force between the high-speed rotating template and the stationary mold in the hopper, gradually forming pellet materials.
Cutting: After extrusion, the pellet materials are pushed to the inside of the mold to form a ring, and the blade inside the mold cuts the pellets to produce pellet products of the same length.
Discharging: The granular products are fed into the discharge port to produce the products of the 304 Stainless Steel Pellet Machine.
TONY's 90KW new 304 stainless steel vertical ring die pellet machine mainly has 4 parts:
1.TONY new 304 stainless steel vertical ring die pellet machine
2. The rollers automatic lubrication system contains galvanized grease storage barrel.
3. New cyclone and dust bag collect system, including fan and pipe and dust collection bucket.
4. Electrical control system for all the above equipment.
A. Capacity:1-1.5Ton/Hour
B.Main Machine Power:90KW
C.Type: Vertical Ring Die Type With 2 Layers.
Product Characteristics
1. Efficient energy conversion
Biomass pellet machine can efficiently convert biomass raw materials into solid pellet fuels, which have a higher energy utilization rate than traditional fuels, and the exhaust gas emissions after combustion are more environmentally friendly.
2. Low cost, high production efficiency
The processing process of biomass pellet machine is relatively simple, and only needs to be compressed and dried, which makes the production cost low, while the production efficiency is high, which can save a lot of costs for enterprises and increase economic benefits.
3. Wide range of applications
Biomass pellet fuel can be used in heating, power generation, industrial production and many other fields. In the field of heating, it can replace traditional coal, natural gas and other fuels, reduce environmental pollution and save energy costs. In the field of power generation, biomass pellet machine can convert biomass fuel into electricity, providing reliable energy for urban industrial production and residential life. In addition, biomass pellet fuel can also be used for barbecue, heating and other purposes in family life.
4. Energy saving and environmental protection
The fuel produced by the biomass pellet machine has environmental protection characteristics, and the exhaust gas emissions after combustion are less, which helps to reduce air pollution. At the same time, the biomass pellet machine uses agricultural waste and other biomass raw materials to achieve the recycling of resources, helping to reduce dependence on fossil fuels.
5. Simple structure and convenient operation
The design of biomass pellet machine is reasonable, the manufacturing quality is reliable, and it has the characteristics of simple structure, easy operation, small size, less occupation, labor saving and electricity saving.
6. High wear resistance and long life
The main parts of the biomass pellet machine are specially treated with wear-resistant materials, so it can be continuously pressed and produced with strong durability. For example, the mold is developed by special processing technology of alloy steel, which has a hard and wear-resistant surface and a firm heart, and has a high low temperature impact toughness.
7. Automatic lubrication system
The automatic lubrication system is added to the biomass pellet machine, and the lubricating oil is automatically injected during the working time, which reduces the maintenance frequency and downtime, and improves the operation efficiency of the equipment. Wide Range Of Application
Wide Range Of Raw Materials
Application Field
Detailed Photos
TONY Pellet Machine Main Parts
TONY Pellet Machine Main Spare Parts
Product Parameters

TONY Vertical Ring Die Pellet Machine TYJ551-90KW -304Stainless Type Model
Main Parts: 1.TONY new 304 stainless steel vertical ring die pellet machine TYJ551-90KW. 2. The rollers automatic lubrication system with galvanized grease storage barrel. 3. New cyclone and dust bag collect system, including fan and pip.e 4. Electrical control system for all the above equipment.
Brand	Model	Main Power	Lubrication Power	Dust Power	Capacity	Weight	Ring Die Inner Size	Machine Size
TONY	TYJ551-III-90	90KW+3KW	0.25KW	0.95KW	1-1.5TPH	5.2T	560MM	2364*1550*1705MM
TONY Vertical Ring Die Pellet Machine -304Stainless Type Models
NO	Model	Main Power	Lubrication Power	Dust Power	Capacity	Weight	Ring Die Inner Size	Machine Size
1	TYJ551-III-90	90KW+3KW	0.25KW	0.95KW	1-1.5TPH	5.2T	560MM	2364*1550*1705MM
2	TYJ551-III-110	110KW+3KW	0.25KW	0.95KW	1.5-2TPH	5.3T	560MM	2364*1550*1705MM
3	TYJ551-III-132	132KW+3KW	0.25KW	0.95KW	2-2.5TPH	5.5T	560MM	2364*1550*1705MM
4	TYJ760-III-160	160KW+4KW	0.25KW	0.95KW	2.5-3TPH	9T	760MM	2464*1750*2150MM
5	TYJ760-III-185	185KW+4KW	0.25KW	0.95KW	2.8-3.3TPH	9.2T	760MM	2564*1850*2150MM
6	TYJ760-III-200	200KW+4KW	0.25KW	0.95KW	3-3.5TPH	9.3T	760MM	2564*1850*2150MM
7	TYJ850-III-220	220KW+4KW	0.25KW	0.95KW	3-4TPH	11T	860MM	2664*1950*2150MM
8	TYJ860-III-250	250KW+4KW	0.25KW	0.95KW	3.5-4.5TPH	12T	860MM	2864*2150*2150MM
9	TYJ860-III-280	280KW+4KW	0.25KW	0.95KW	4-5TPH	13T	860MM	2864*2150*2150MM

Our Advantages

Company Profile
TONY pellet machine has a variety of models, according to the customer production of different models, pellet machine factory price is different. You get what you pay for.
The price always depends on the value. Because the pellet machine market is currently more chaotic, customers must be careful to buy! To make a purchase decision after a comprehensive inspection of a number of comprehensive indicators such as product quality, manufacturer scale strength, pre-sales and after-sales service ability, research and development design ability, rather than just looking at the price!
Please note: if your purchase cost is very low, the later use cost will be very high! Because the purchase of very low cost equipment is likely to cause you to face endless maintenance later, continuous downtime and maintenance will delay your production and make you pay more money.

---
