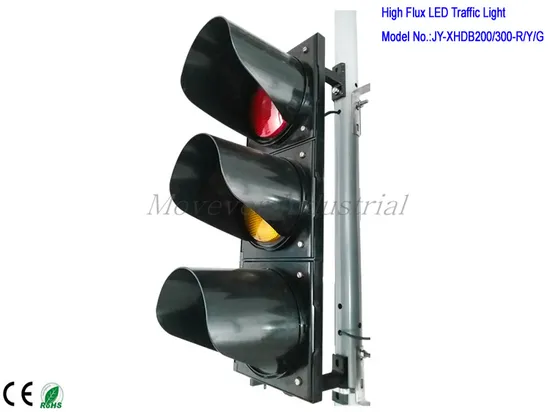

High Power Full Ball Traffic Signal Light Diameter 200mm / Convex Lens

Product Description

Product Parameters Application - urban light signaling Input voltage - AC85V ~ 265V Incandescent-look polycarbonate tinted lens Internal diffusing optical lens for even light distribution Anti-phantom effect minimized, optimal viewing angle High intensity LED light source - low energy consumption High power LED (SMD) Long life cycle - more than 80,000 working hours Highly durable polycarbonate housing, UV-light resistant Modular design - easy installation and maintenance Fixation system either with polycarbonate or aluminum mounting brackets Compliance with CE, RoHS, ISO9001

Working Voltage	AC85V-265V, 50/60 Hz	Working Temperature	-20ºC~+70ºC
Power Factor	≥ 0.92	THD	≤0.15
Vibration Resistance	Acc.to EN60068-2-64:2007	Damp Heat Resistance	Acc.to EN60068-2-30
Housing Material	PC -- UV resistant	Impact Resistance	IR 3 Acc
View Angle	L/R-30° U/D-30°	View Distance	≥ 500m
IP Grade	IP54	Warranty	3 years

Photo	Model	LED Qty	Intensity	Wave length	Power Consumption
	JY-XHD-DP-B-300-R	6pcs	≥700cd	615~630nm	≤9W
	JY-XHD-DP-B-300-Y	5pcs	≥650cd	583~595nm	≤11W
	JY-XHD-DP-B-300-G	5pcs	≥600cd	500~505nm	≤9W
	JY-XHD-DP-JT-300-R	6pcs	≥700cd	615~630nm	≤13W
	JY-XHD-DP-JT-300-Y	5pcs	≥650cd	583~595nm	≤13W
	JY-XHD-DP-JT-300-G	5pcs	≥600cd	500~505nm	≤16W
	JY-XHD-DP-RX-300-R	6pcs	≥700cd	615~630nm	≤13W
	JY-XHD-DP-RX-300-G	5pcs	≥600cd	500~505nm	≤16W
	JY-XHD-DP-ZXC-300-R	6pcs	≥700cd	615~630nm	≤13W
	JY-XHD-DP-ZXC-300-Y	5pcs	≥650cd	583~595nm	≤13W
	JY-XHD-DP-ZXC-300-G	5pcs	≥600cd	500~505nm	≤16W

Detailed Photos
Our Advantages Professional R & D team, High efficiency management system, More than 9 years solid manufacturing experiences, Experienced process standard to different countries (North America, Europe, Australia, Africa,etc.) Company Profile Movever Industrial located in Shenzhen, China, which is specializing in roadway safety products & luminous lighting product design service and manufacturing.
We keep learning forever, moving forever, Let's serve for you to be a comprehensive traffic safety, LED lighting solution provider.
we have below products range:
>Traffic road studA. >Traffic warning / flashing light >Traffic signage >Traffic signal light >Traffic controller >Traffic reflective material >Mobile traffic signal light >LED street light Trade Terms & Payment A. EXW, FOB, CFR, CIF is optional for your choice.
B. Telegraphic Transfer (T/T), Letter of Credit, WU, PayPal are accepted.
