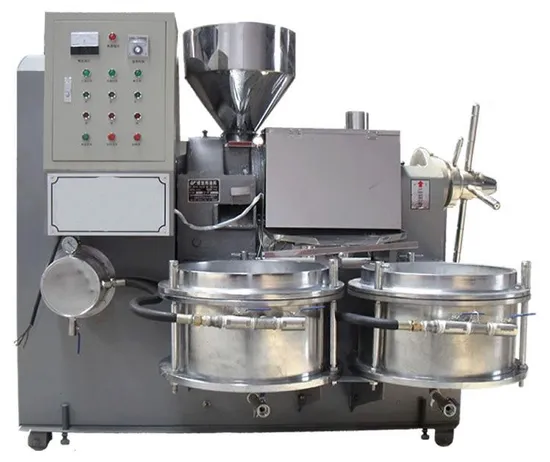

Multi-Purpose Cold Oil Press Machine for Peanut Seeds Cooking Oil

Product Description

Automatic Grade Soybean Oil Type oil seed press extraction Production
Brief introduction of oil press
oil press machine, which is also called oil expeller, oil extraction machine or oil mill, It can be used for various raw materials, such as soybeans, peanuts, cotton seeds, rape seeds, sesame seeds, sunflower seeds, canola seeds, coconut seeds, tea seeds, palm seeds and jatropha seeds.
Working principle of oil press
Screw expeller pressing is to separate the oil from oil bearing materials by the pressing power which comes from the change of chamber volume, drive from screw worm, resistance of curve teeth at press rings and extrusion friction between oil materials. Under the big pressure created in press chamber, the oil can be discharged from gap of press bars and oil trough of press rings. Either big scale and small scale of screwhemp eucalyptus oil extraction machinefor algae, they have similar theories in screw expeller pressing. Because the screw type seedsesame eucalyptus oil extraction machineis mainly used by extrusion theory, so it is also called as oil extruder or oil extrusion process
Sinoder Group supply complete vegetable seeds oil press plant, we supply big commercial industrial oil expeller, small scale screw oil press machine, home use hydraulic oil press machine and unrefined oil refinery machines.
big commercial industrial oil expeller
General Description
LYZX Low-temperature Cold Oil Expeller is a first generation low-temperature oil screw expeller, special good for the low-temperature processing of various kinds of vegetable oil-bearing crops. The highlights are low pressing temperature, high oil get rate, low residual oil content in cake, light color, high quality and nutrition of oil, which totally fulfill the national standards.
Features
1. The pressing oil is with bright color, high nutrition, by mechanical sedimentation and filtering, natural oil is gained, no need for refining and refining loss.
2. The protein of cake is low level damaged, help to fully use of vegetable protein.
3. Low-temperature(approx. 50ºC) so the steam is significantly saved.
4. In the pressing process the meal hasn't contacted with any solvent, acid, alkali, bleaching earth or chemical additive. so there is little oil and cake nutrition and trace element loss, the cake protein is preserved.
Technology Data
1. Production Capacity: 6-12 T/D( low-temperature pressing of peanut kernel)
2. Oil content in cake: 4-8%
3. Feeding temperature: approx. 50ºC
4. Total motor power: (22+4+3)KW
5. Net weight: 3500KG
6. Dimension: 3176×1850×2600 mm
LYZX24 Low-temperature Cold Screw Oil Expeller
Technology data:
1. Motor Power: 30+5.5(4)+3KW
2. Net weight: 6300(5900)KG
3. Dimension: 3180×1850×3980(3430)mm
4. Production Capacity: 20-25T/D
5. Oil content in cake: 10-19%
Technical parametersLYZX28 Low-temperature Cold Screw Oil Expeller

Technology data:
1. Motor Power: 45+11+1.5KW
2. Net weight: 9600KG
3. Dimension: 3783×3038×3050mm
4. Production Capacity: 40-60T/D
5. Oil content in cake: 15-19%
LYZX32 Low-temperature Cold Screw Oil Expeller
Technology data:
1. Motor Power: 90+7.5+1.5KW
2. Net weight: 12650KG
3. Dimension: 4832×2917×3236mm
4. Production Capacity: 80-100T/D(the low-temperature pressing of peanut kernel)
5. Oil content in cake: 15-19%

LYZX34 Low-temperature Cold Screw Oil Expeller
Technology data:
1. Motor Power: 160KW
2. Net weight: 14980KG
3. Dimension: 4935×1523×2664mm
4. Production Capacity: 150-180T/D(the low-temperature pressing of peanut kernel)
5. Oil content in cake: 11-15%
Featrue &Advantage
1.High oil expeller rate, oil efficiency can reach more than 90%.
2.Simple and easy to operate, with automatic controller.
3.Health,safety , nutrition and fresh.
4.Energy saving and low noise.
5.Gain popularity at home and abroad,especially American ,Asian countries.
Main technical parameter:

Model		6YL-80	6YL-100	6YL-120	6YL-160
Dia.		φ 81mm	φ 101mm	φ 123mm	φ 160mm
Screw speed		47r/min	38r/min	35r/min	32r/min
Power	Motor	5.5kw	7.5kw	11kw	22kw
	Vacuum pump	0.55kw	0.75kw	1.1kw	1.1kw
	Heater	2.2kw	2.2kw	2.2kw	2.2kw
Capacity		80-100kg/h	150-200kg/h	250-300kg/h	500-600kg/h
Weight		880kg	1250kg	1500kg	1800kg
Size (mm)		1500×1200×1750	2000×1300×1850	2100×1300×1850	2300×1300×1950

packing and shipping
1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box.
Other Equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
Our services:
1.Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
2.Services provided during the sale:
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients.
3. After-sale services:
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipments;
3) Training the first-line operators on site;
4) Examining the equipment regularly;
5) Taking the initiatives to eliminate the failure(s) rapidly at site;
6) Distributing the guarantee fittings door-to-door;
7) Providing technical exchanging;
8) Providing maintenance for big item
