Zmde Advanced Box Beam Girder Welding Manufacturing Line Box Beam Production Line Electroslag Box Beam Automatic Welding Machine

Product Description

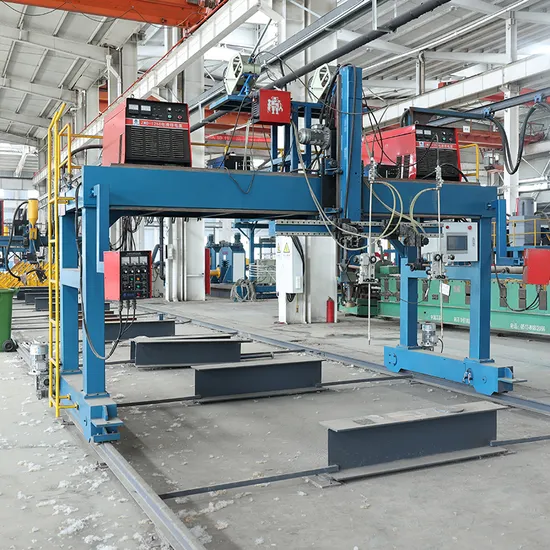

ZMDE Electroslag Welding Machine Box Beam Line ------------------------------------------ (Due to different product models, the actual product may differ slightly from the picture)
The equipment is a complete set of welding equipment specially used for the diaphragm welding of box beam. The automatic box beam welding production line can be formed with the partition assembly machine, U-type and box type assembly machine, gantry submerged arc welding machine and other auxiliary equipment such as face milling, drilling, conveying, turning and shot blasting. Gantry-Type Electroslag Welding Machine: Optimal Solution for Box Girder Diaphragm Welding
> Key Benefits <
- Superior Welding Quality: The electroslag welding technology ensures high-quality welds with exceptional strength and integrity, meeting the rigorous demands of box girder construction.
- High Efficiency: This machine significantly reduces welding time compared to traditional methods, enhancing overall production efficiency and enabling faster project completion.
- Precise and Consistent Results: Advanced automation and control systems deliver precise and uniform welds, minimizing defects and ensuring consistent quality across all welds.
- Versatile Application: Capable of handling different sizes and configurations of box girders, this machine offers flexibility to meet diverse production requirements, making it suitable for a wide range of projects.
- Cost-Effective: By improving welding speed and reducing the need for manual labor, our gantry-type welding machine provides a cost-effective solution, optimizing operational expenses and boosting profitability. Technical Parameters

Model	ZMD-XDZ-12
Track Distance	4000mm
Gantry traveling speed	6m/min
Walking motor power	0.55kw
Applicable workpiece section size	300X300-1200X1200mm
Applicable workpiece length	4000-15000mm

Machine Configuration
Model.	Technical Para.
ZMD-XDZ-12	1,Gauge 5 meters, single rail length 18 meters travel 15 meters. 2,Applicable box beam height:300-1200mm 3,Applicable box beam width: 300-1200mm 4,Submerged arc welding power supply: two sets of MZ-1000 wire pole electroslag welding machine. 5,70m² cable conductive 6,Power cord: 3*4²+1*2.5²=40 meters 1 piece 3 * 16 ² + 1 * 10 ² = 40 meters 2 (customers to provide) 7,Electricity source: AC 380V 50HZ 3-phase

Company Profile ZMDE Co.,Ltd. was founded in 2013, is an assembly building intelligent equipment research and development, manufacturing, sales and service as one of the high-tech enterprises, national specialization, speciality and new "small giants" enterprises, the core industry consists of steel structure assembly building intelligent industrial mother machine and industry IOT and intelligent control system two plates.
The headquarter base of the company is located in Lingang New Area, Pudong New District, Shanghai, which contains the Research Institute of Artificial Intelligence for Assembled Buildings with a floor area of 32,000 square meters, mainly undertaking the company's management and the research and development functions of high-end core technologies of Artifificial Intelligence for Assembled Buildings, Intelligent Buildings, and Industrial Internet of Things (IoT).
The Shandong base is located in Weicheng District, Weifang City, which mainly researches, develops and produces intelligent industrial mother machine for steel beams of assembled buildings and intelligent industrial mother machine for walls of assembled buildings.
FAQ 1.Q: What is the minimum order quantity?
A: 1PCS. 2.Q: What are the payment terms? A: L/C; T/T. 3.Q: How long is the delivery time? A: 30 Days. 4.Q:How long is the warranty period? A: 1 Year.(Original Manufacturers. equipment parts can be achieved lifelong maintenance)

---
