Aluminum Anti Static Raised Flooring for Data Centers & Commercial Spaces Durable Corrosion Resistant Lightweigh Heavy Load Capacity

Product Description

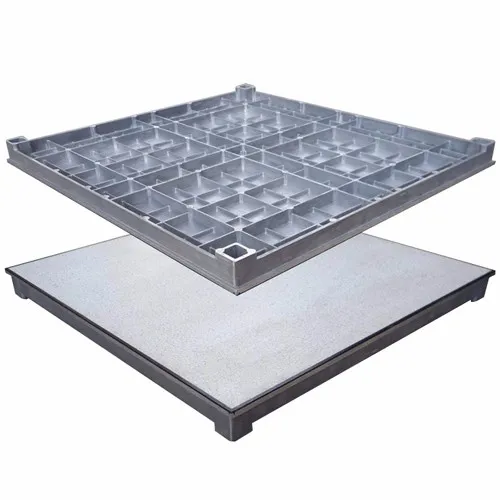

Our Aluminum Alloy Anti-Static Raised Access Floor system combines exceptional durability, lightweight design, and superior anti-static performance. Engineered for environments where static control and load-bearing capacity are critical, this flooring solution is ideal for data centers, server rooms, laboratories, electronics manufacturing facilities, and telecommunication rooms. With its modular construction, corrosion resistance, and effective static dissipation, it ensures a safe and efficient workspace while enhancing the long-term performance of your sensitive equipment.
Material: Panel Material: High-strength aluminum alloy Core Material: High-density calcium sulfate, honeycomb core, or mineral core for strength and rigidity Surface Treatment: Anti-static coating (epoxy, vinyl, or conductive paint) Edge Material: Anodized aluminum or PVC edge trim for smooth finishing and durability Fire Resistance: A1
Airflow and Cooling: Ventilation Rate (Optional for underfloor cooling systems): Open Area Choice: 20% - 75% (depending on panel design and core material) Airflow Resistance: Low resistance for efficient airflow under the floor to maintain optimal temperature in data centers and server rooms
Surface Finish: Standard Finish: Smooth, anti-static vinyl or epoxy coating for high-performance static control Optional Finish: Textured, anti-slip surface for high-traffic or industrial areas Color Options: Customizable finishes available (commonly gray, black, beige, or other colors as per requirements) Edge Treatment: Anodized aluminum edges or PVC trim to ensure smooth and seamless installation

Type	Size(mm)	Concentrated Load			Central Ultimate Load			Rolling Load
		N	KG	LB	N	KG	LB	N	KG	LB
FS500	600*600*55	4902	500	1111	12255	≥1250	2778	1471	150	333
FS700	500*500*25	6863	700	1556	17157	≥1750	3889	1961	200	444
FS1000	500*500*25	9804	1000	2222	19608	≥2000	4444	2941	300	667
FS1200	500*500*25	11765	1200	2667	23529	≥2400	5333	3431	350	778
FS1500	500*500*25	14706	1500	3333	29412	≥3000	6667	3922	400	889
FS1700	500*500*25	16667	1700	3778	33333	≥3400	7556	4902	500	1111
FS2000	500*500*25	19608	2000	4444	35294	≥3600	8000	5882	600	1333
FS2500	500*500*25	24510	2500	5556	44118	≥4500	10000	7843	800	1778
FS3000	500*500*25	29412	3000	6667	47059	≥4800	10667	9804	1000	2222

---
