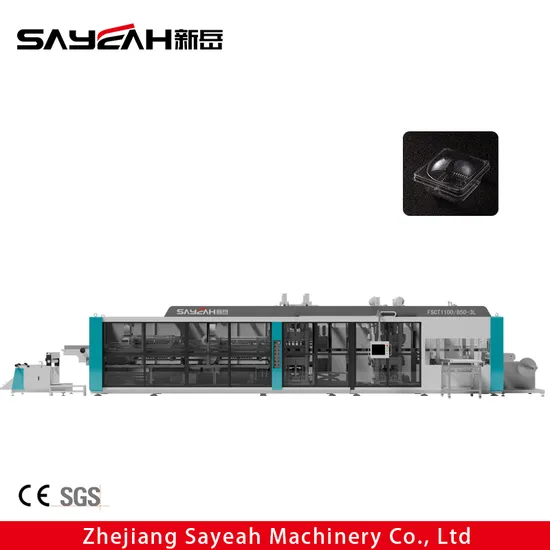

Automatic Disposable Plastic Coffee Cup Lid Making Machine with Good Price

Product Description

Fully Automatic High Speed and Low Energy Consumption Plastic Takeaway Box Clamshell Features
1.European design, complete functions, suitable for diversified production lines, safe, efficient, energy-saving and hygienic
2.Unwinding station electric lifting, double roll holder. allow for single operator loading rolls up to 1T
3.Operator-friendly HMI and the system has the function of remote connection
4.Fast and accurate temperature control system (error±1 degree), with hot furnace detection material drop and air source low pressure protection system
5.Intelligent operation, the whole machine is equipped with formula storage and automatic adjustment without shutdown
6.It can share molds with models of most well-known brands at home and abroad, and cooperate with existing production lines
7.Fast mold change system, which can facilitate fast, accurate and safe mold change and reduce machine downtime
8.Under any forming scheme, the clamping frame and plug assist function can be used alone or at the same time, greatly simplify the mold structure 9.Materials with strong shrinkage can adopt the single station in-mold-forming-cutting function to ensure the edge cutting accuracy
10. High precision forming and cutting technology to achieve the forming and cutting performance of high-speed control and low wear
11. The stacking station can be customized, which simplifies the stacking of complex parts and is convenient to meet further production needs
12. Optimize the design of electric cabinet and simplify the machine assembly and wiring installation process

Model	FSCT1100/850-3
Oty of Stations	PP,PS,PET,PVC,HIPS,PLA,OPS,EPS,C-PLA,ABS
Sheet Material	3
Forming Clamping Force	1050KN
Punching Clamping Force	1050KN
Max.Forming Area	1100×850mm
Max.Forming Depth	145/125mm
Max.Sheet Width	1130mm
Max.Sheet Roll Dia.	1000mm,1.5T
Sheet Thickness Range	0.15-2mm
Max.Dry Cycle Speed	55 Cycles/min
Air Consumption	6m³/min,0.6-0.8Mpa
Overall Power	305kw
Dimension(L×W×H)	15500×2950×3500mm
Machine Weight	25T

Detailed Photos

Main Electrical Components
Industrial control system	DELTA TAIWAN / Inovance Shenzheng
PLC	DELTA TAIWAN / Inovance Shenzheng
Touch screen interface	DELTA TAIWAN / Inovance Shenzheng
Feeding servo-motor and drive	DELTA TAIWAN / Inovance Shenzheng
Stacking servo-motor and drive	DELTA TAIWAN / Inovance Shenzheng
Forming servo-motor and drive	DELTA TAIWAN / Inovance Shenzheng
Cutting servo-motor and drive	DELTA TAIWAN / Inovance Shenzheng
Vacuum pump	RUFUS,Jiangsu
Infrared ceramic heater	Tianbao, CHINA (3 years Warranty)
Solid state relay	SHANGHAI, AOYI
Pneumatic components	MAC,USA/SMC, Japan/ Germany

According customers' requirements, there also Lenze system for choosing Our Advantages

---
