US$550.00-650.00
|
24 Pieces
(MOQ)
|
Basic Info.
Braking Mode
Front Disc Brake Drum
Cooling Method
Air Cooling
Engine
125cc and 150cc Engine
Options
Remote Control, Bluetooth MP3, Tail Box, etc
Muffler
Steel or Alloy Muffler
Tire
120/90-10 or 120/70-12 Tubeless Tire
Transport Package
Frame+Carton
Production Capacity
20000 Units Per Year
Product Description
Feature:

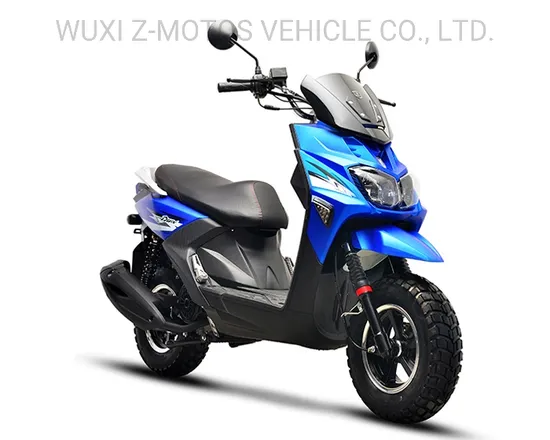

This scooter can use 125cc or 150cc engines. 10 inch or 12 inch alloy wheels with front disc brake and rear drum brake. The Tail box, Remote Control, Bluetooth MP3 are optional.
Technical specifications:
| Engine | Frame |
| Engine model | 157QMJ | Dimension | 1960*730*1150mm |
| Cylinder | Single | Wheel Base | 1380mm |
| Valve | 4 stroke | Ground clearance | 140 mm |
| Cooling Type | Air-cooling | Seat Height | 780 mm |
| Bore* Stroke | 57.4*57.8mm | Dry weight | 101 kg |
| Compression ratio | 9.2:1 | Max. load | 150 kg |
| Displacement | 149.5 ml | Max. speed | 85 km/h |
| Starter | Electrical/Kick | Fuel Tank Capacity | 6.5 L |
| Ignition | Transistor | Clutch type | Automatic |
| Rated power | 7.0 Kw 7500±500 r/min | Brake (Fr./Rr.) | Disc/Hand, Drum/Hand |
| Max. Torque | 9.8 Nm 6000±500 r/min | Transmission | Belt + Shaft |
| Fuel consumption | 2.6L/100KM | FR & RR Tire | 120/70-12 or 120/90-10 |
| Package | SKD | CBU |
| Packing status | Carton with iron bracket | Carton with iron bracket |
| Packing size | 1800*570*860mm | 1870*570*1150mm |
| Qty in container | 24/20GP, 50/40GP, 75/40HQ | 24/20GP, 50/40GP |
| M.O.Q | 24 units | 24 units |
Details pictures:
How to get the exact price:
1,Please tell us the details that affect the price, such as the displacement of engine, and wheel size you need.
2, Do you have any special requirements for the product to meet the local market, such as remote control, Bluetooth MP3, Rear Box and so on?
3, The price has a great relationship with the order quantity, so please tell us the quantity you need to order when making an inquiry.
4, In order to ensure the interests of importers, but also to ensure the best after-sales service. Our company doesn't do retail business.
1, Sub-assembly - VIN code printed on frame and pressed steel bowl.
2, Assembly line operation.
3, Comprehensive performance test of motorcycle.
4, Product packaging assembly line operation.
1, Finished product warehouse CKD packaging.
2, Product transportation - CKD loading.
3, Finished product warehouse - SKD packaging.
4, Product transportation - SKD loading.
1, Indonesian President and his wife drove our products to visit his people.
2, Paraguayan Vice President Test Drive Our Tricycle.
3, Russian OTTC experts visited our factory and test drove our electric vehicles.
4, European TUV experts come to our factory for inspection and technical exchange.
1, Photos of the Canton Fair.
2, Interview with local motorcycle media in Sao Paulo, Brazil.
3, New motorcycle made its debut in Russia.
4, Vietnam Electric Vehicle Exhibition.
>>
