Supmeter Load Cell Indicator Simple Weighing Controller Embedded Installation Relay Weigh Controller

Product Description

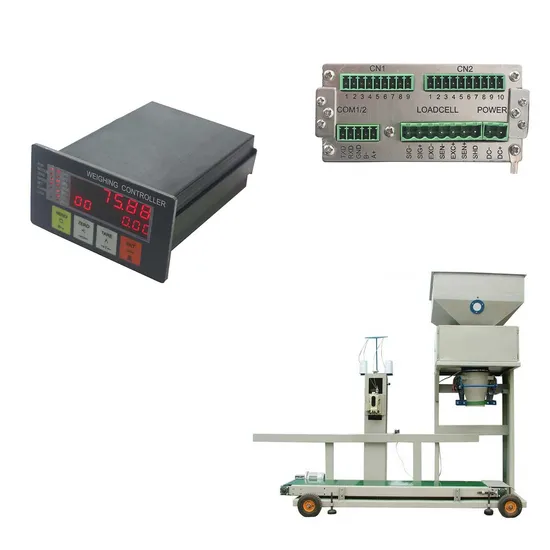

Supmeter load cell indicator Simple weighing controller embedded installation RELAY weigh controller
Main Applications
4-Material Ration Batching Scale. Main Features
EMC design with high anti-jam for industrial environment. DC24V power input with reverse polarity protection. 32-bit ARM CPU with 48MHz clock & high arithmetic speed. 6+8 Red LED digital tubes for English&digit display. 24-bit ∑-△ADC with internal resolution 1/1,000,000. High sampling frequency 400Hz. Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response. Auto Zero Tracking. Fall Value Auto Correction. Auto Re-feed for Negative Deviation Alarm. Target Batch Count Control. Auto Pause for Gross Weight Upper Limit & Deviation Alarm. 'Manual Pause' Operation. Batching Process Power-off Protection. 2-speed[high/low] feeding control by DOs or AOs. Definable AO/COM[Communication Port]. Recipe Number: 1. DI/DO Function Definition

CN1 [DI]
No.	Pin	Signal Name	Description
1	COM	COM	DI Common Terminal [DC-].
2	DI1	AUTO	Auto/Manual. ON: Auto state. OFF: Manual state / Emergency Stop.
3	DI2	START	Start / Clear Alarm. In running process: Clear Alarm. Pause state: Clear Alarm & Recover Running. OFF→ON→OFF.
4	DI3	PAUSE	Manual Pause. OFF→ON→OFF.
5	DI4	DUMP_I	Manual Dump. 1. Stop state: ON: Manual Dump; OFF: Stop. 2. In the Auto-batching process If [312] 'Dumping Mode' = '0. HAnd', it's necessary to input the DI signal 'Manual 'Dump' (OFF→ON→OFF) for triggering the dumping process.
6	DI5	STOP	Normal Stop [Last Batch]. OFF→ON→OFF: The batching process will stop automatically after the present batch finished.
7	DI6	SP3_I	Manual Dribble Re-feed. Valid at Pause state with Mn's Low Tolerance Alarm. ON: Start Mn's Dribble Feed. OFF: Stop Mn's Dribble Feed.

Company Introduction
Changsha SUPMETER Technological Co., Ltd., as a council member of China Weighing Instrument Association (CWIA), is a high-tech enterprise which specializes in designing and manufacturing weighing/batching controller, force measuring controller, explosion-proof controller and related system software. Since founded in 2004, SUPMETER is persisting in doing the same thing of 'customizing satisfied products for you and building win-win cooperation with you' and insisting on the core idea of 'Being Super in Meter and Being Perfect in Service'. On the quality basic of 'Accurate Weighing, Quick and Steady Control, Standard Communication Bus and Protocol, Suitable for Industrial Environment', SUPMETER is doing the best to meet your individual requirements and to reach the enterprise goal of 'Outstanding Quality, Continuous Improvement, Effective
Service and Customer Satisfaction'.
FAQ 1. What detailed information do I need to provide if I want to place an order? We need to know the following information: Capacity, Usage and other related parameters you need. 2. Do you have any discount? Yes, if you buy large QTY, please send us a email, we will give you a big discount. 3. What terms of payment are available? We accept T/T, L/C, Trade assurance, Secure payment, Western Union, Paypal, Money Gram, etc. 4.When will you arrange the production? We will arrange the production immediately after receiving your payment. 5. How do you ensure good product quality? We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.

---
