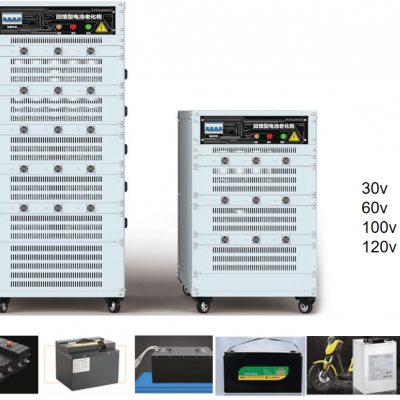

E-Motorcycle Battery Charging&Discharging Tester with Date Records Multi-Function Battery Pack Tester 100V100a
60v100A Battery Pack Charging Discharging Machine
Product Description
Function Features:
1.with constant current and constant voltage charging function .
2.with constant current discharging function .
3.By charging and discharging the battery ,the charge protection and discharge protection of the battery can bedetected.
4. Charging and discharging the battery,record the charge capacity and discharge capacity of battery.
The electric energy feedback aging cabinet can be recycled, which means when charging, the electric energy will be feedback from the three-phase grid to the battery pack, and when discharging, the electric energy will be feedback from the battery pack to the three-phase grid
1 . The energy flows in two directions, and the discharge energy is fed back to the power 93% ( DC bus efficiency),
2. The middle computer and the lower computer both use 32-bit ARM chip can buscommunication, the data transmission speed is fast and the performance is stable.
3. DCAC module adopts space vector modulation technology and digital control, which makes the voltage utilization rate higher and the current harmonic shunt smaller.
4 DCDC module adopts advanced PID control technology and multiple software hardware protection mechanism to ensure the stability of equipment operation,
5. Fast output current conversion, no overshoot phenomenon, avoid the impact of the device on the battery pack.
6. CAN2. 0 interface, which can access BMS data of battery pack,can control battery pack status in real time during charging and discharging process.
7. Support the same port and different port battery aging test
8. Voltage detection adopts 4-wire system.
9. Integrated anti reverse connection module to prevent battery reverse connection;
10. / discharge status LED indication. Charge discharge curve analysis diagram. support scan code function.
11. It can be integrated into the production line, cooperate with the production rhythm, and can also be detected separately.
12 Be able to communicate with pack production line, such as OPC, and other interface protocols;
13. Support battery pack temperature acquisition.
Product Technical Parameter
| Type | Digital |
| Dimensions | 960mm*600mm*1750m |
| Supply voltage | 380(V) |
| Power | 2000(W) |
| Weight | 200(Kg) |
| Current measurement range | 1-600(A) |
| Current measurement accuracy | 0.1(A) |
| Voltage measuring range | 1-110(V) |
| Voltage measurement accuracy | 0.1(V) |
| Measuring range of internal resistance | 0.1-100(mΩ) |
| Internal resistance measurement accuracy | 0.1(mΩ) |
| Temperature measurement range | -10-40(℃) |
| Temperature measurement accuracy | 0.1(℃) |
| Capacity measurement range | 1-600(AH) |
| Capacity measurement accuracy | 0.1(AH) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
