China Manufacturer High Speed Stainless Steel Coil Decoiler Machine

Product Description

Product Description

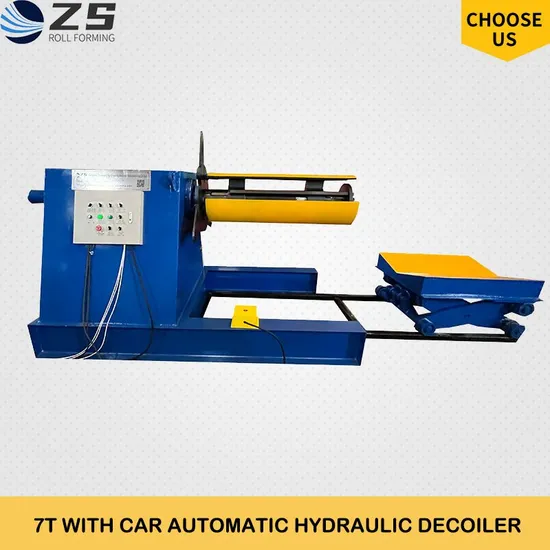

Fully Automatic Steel Coil 3/5/7/8/10T Hydraulic Decoiler With Loading Car Uncoiler Hydraulic decoiler, which it is designed to support the coil and provides tension to the steel belt, is an decoiler composed of a frame, a main shaft, an expansion and contraction drum, and a brake device.
And according to the market needs, we have 1.5Ton, 3 Ton, 5 Ton, 7Ton,10 ton and more types design for you too choose.
Product Parameters

Fully Automatic Steel Coil 3/5/7/8/10T Hydraulic Decoiler With Loading Car
Name	Details
Main frame	45# steel
The capacity	1.5-15 Tons
Coil I.D	450-550 mm
Drive mode	Hydraulic station
Coil width	Max 1650mm
Shaft diameters	Φ 85mm
Motor power	4kw
Language	Chinese/English or as your need
Voltage	380v 50hz 3Phase,220V 60HZ 3Phase

The Main Frame:
It is made of section steel, A3 steel plate,#45 steel forged bearing seat after assembly welding, and qualitative annealing treatment is not deformed.
Shaft:
4 segmebts can make the power more evenly to each piece meanwhile the back round wheel can protect the coil against of scratch the surface of the coil.
Brake device:
Using pneumatic disc brake components,the brake force can be adjusted, the brake is tight when parking.
Hydraulic power:
Push-pull expansion and contraction mandrel:
Hydraulic cylinder model specification :
FA-φ125*130mm
The control panel:
As to the control panel, we can customized it according to your own language.
