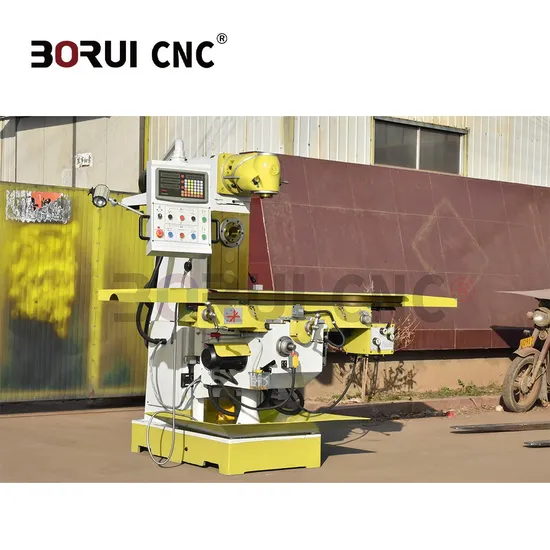

Universal Swivel Head Milling Machine Model X6436

Product Description

Degree Rotary Head Milling Machine X6436 Small Milling Machine For Sale
Product Description
The main performance characteristics:
1.It can realize vertical and horizontal milling two processing function;
2.The two rotary milling head, spindle at any angle rotating and adjustment;
3.Can be used for processing and mold shell;
4.Work bench X. Y all are gear drive automatic feed, Z to the electric lift.
5.Modeling beautiful, generous, overall layout of symmetry coordination. rail surface heat treatment of high hardness, strong steel, gear up for gear grinding ,by high frequency quenching and low noise durable
Application:
Universal rotary head milling machine is a kind of medium and small general metal cutting machine tools, that can lie milling and can vertical milling.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Product main technical parameters:

Specifications	Units	X6436
Table size	mm	1500x360
Table travel	mm	1000x320x500
T-type slot (numbers / width /space)	mm	3-18-80
Horizontal spindle center to table surface	mm	0-450
Spindle taper		ISO50
Spindle speed range(steps)	rpm	48-1660(V) , 60-1800(H)
Table power feed speed range	mm/min	22-420(X) 22-393(Y) 10-168(Z)
Swivel angle of milling head	°	360
Table rotate angle	°	35
Spindle motor power	KW	4
Machine size	mm	2070x2025x2020
Machine weight	Kg	2480

Details Display


Company Profile
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have

---
