Plum Blossom Winding Machine for Adaptable 2-6mm Wire Coiling Processes

Product Description

Experience unparalleled excellence with our high-quality wire coiling machine. Engineered for precision, this exceptional carton winding machine is the epitome of innovation in the field, perfectly complementing our Wire Bobbin Machine. Designed to accommodate adaptable 2-6mm wire coiling processes, this machine ensures seamless, efficient, and reliable operation, catering to all your wire management needs.
Product drawing
Introducing the Plum Blossom Barrel Take-Up Machine, the epitome of efficiency and versatility! This remarkable machine is expertly designed for square or round carton packaging, perfectly accommodating flexible wires such as vehicle and electronic wires. Whether used independently as an inverted spool or seamlessly integrated with an extrusion line, this machine promises exceptional production efficiency. Its innovative special vibration device ensures that each wire is neatly and precisely aligned, eliminating any chance of disruption or mess. Experience a new standard of quality and smooth operation with this must-have equipment for all your wire coiling needs.

Model	Wire diameter	bucket size	Max weight	Color
ML500	φ2-6mm	500mm	75-100kg	grey
Speed	Motor	Forming style	PLC	Automatic
300m/min	4KW	Quincunx	Taida	yes

Detailed Photos
Introducing a marvel of engineering and efficiency: our Wire Bobbin Machine for Adaptable 2-6mm Wire Coiling Processes. This state-of-the-art equipment boasts an impressive high degree of automation, making it the epitome of modern convenience. With a user-friendly, humanized operation interface, managing operations becomes an effortless and swift experience. Revolutionary features such as automatic barrel change ensure seamless transitions, enhancing productivity. Equipped with an external spark machine, this equipment exemplifies precision, automatically managing the concave and convex meter to expertly exclude any waste line, ensuring only the highest quality output.
Product Parameters
I. Main Accessories Brand: Elevate your machinery with premium electrical appliances and top-tier bearings, sourced exclusively from renowned brands.
1. Motor: Experience consistent reliability with our constant speed AC motor.
2. Controller: Harness the precision of the Japan Yaskawa 415V inverter for superior performance.
3. Programmable Design Controller: Utilize Delta for unparalleled control and efficiency.
4. Electrical Appliances: Benefit from the trusted quality of Chint and Shilin brands for all electrical components.
5. Bearing: Enjoy smooth operations with bearings from Harbin and NSK.
II. Main Specifications and Performance:
1. Applicable Outer Diameter: Masterfully handle wire diameters ranging from Ф2mm to Ф6.0mm.
2. Packaging and Conveying Platform Height: Precisely engineered at 350mm for optimal workflow.
3. Dimensions and Weight: Outer diameter of 500mm, adjustable height of 400-500mm, supporting a weight capacity of 75-100kg.
III. The Plum Blossom Take-Up Machine Composition Specifications:
1. Adaptable Wire Diameter: Seamlessly accommodate soft wire with a maximum diameter range of Ф2-Ф6 mm.
2. Adapt Line Speed: Achieve remarkable speeds of up to 300m/min for unparalleled efficiency.
3. Power: Driven by a robust 4KW AC motor, operating at a three-phase 380V voltage for formidable performance.
4. Molding Pattern: Craft intricate overlapping plum blossom shapes for superior aesthetics.
5. Vibration Device: Enhance your cable's integrity with a 1/2hp gear motor, optimizing vibration for denser winding and minimized transport loss.

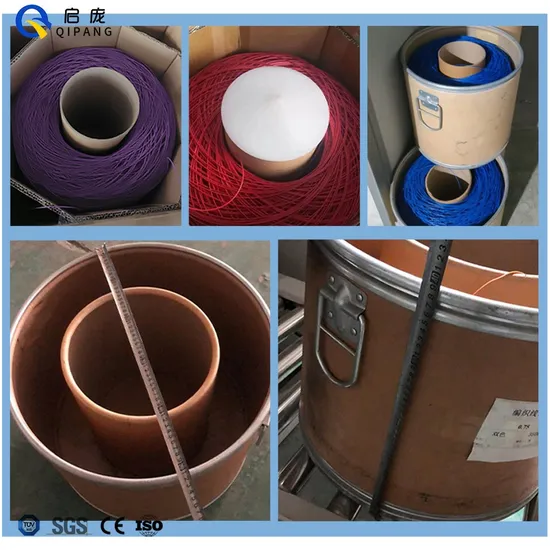

6. Compatible with Falling Barrel: Accommodates an outer barrel inner diameter of 575mm, inner barrel outer diameter of 300mm, and height of 585mm (also customizable to non-standard sizes).
7. Meter Meter Forecast Function: Features automatic barrel change, line storage, and manual waste elimination for streamlined operations.
8. Threading Method: Achieve swift and efficient stringing with our rapid threading capabilities.
9. Suitable for Round Wire Plum Blossom Type: Perfect for tasks like cutting and peeling, ensuring no knots and supporting an impressive cutting speed of up to 10m/s.
10. Weight: A sturdy construction weighing 200kg ensures stability and durability. Plum Blossom Take-Up Machine.
11. Operation Direction: Fully customizable to meet your specific requirements.
12. Machine Color: Elegantly finished in off-white for a sophisticated appearance.
Product Application

Introducing the Innovative Plum Blossom Take-Up Machine: A state-of-the-art solution designed to enhance your wire coiling operations by seamlessly integrating with the Wire Bobbin Machine. Essential Auxiliary Parts: Enhance functionality and performance with our meticulously engineered auxiliary components.
1. Essential Features and Components: Seamlessly Match with Auxiliary Inlet Guide Frame and Steering Mechanism: Our components are designed for perfect synergy, ensuring smooth operation and maximum efficiency.
2. Device Image: Explore the Distinctive Design of the Plum Blossom Take-Up Machine: View the image to appreciate the innovative engineering and sleek design that defines our cutting-edge technology.
Company Profile

Shanghai Qi Pang Industrial Co., Ltd., a paragon of excellence, boasts over two decades of unrivaled expertise. Since its inception, the company has dedicated itself to the mastery of cable testing machines and cable winding machines. We proudly operate our own state-of-the-art production and assembly workshops, welcoming customers to engage via video tours or in-person factory inspections. Our commitment to service excellence is embodied by our professional sales and technical teams, who are poised to provide unparalleled support before and after your purchase. Enjoy seamless communication with our experts, available 24/7, ready to address your inquiries with precision and care.
Discover premium craftsmanship with our high-quality wire coiling machines, carton winding machines, and wire bobbin machines. Designed to meet the diverse needs of cable and wire industries, each machine exemplifies innovation and reliability.

---
