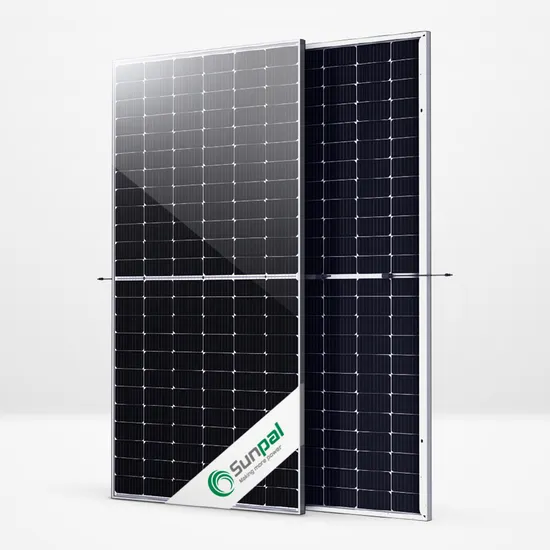

Sunpal Bifacial Solar PV Modules 400W 450W 500W 550W 600W Half Cell Photovoltaic Solar Panels Manufacturers in China

Product Description

Product Description
ELECTRICAL DATA(STC)

ELECTRICAL PARAMETERS
Module	SP530MB-72H	SP535MB-72H	SP540MB-72H	SP545MB-72H	SP550MB-72H
Peak Power Watts(Pmax/W)	530	535	540	545	550
Power Output Tolerance(W)	0 ~ +5W
Maximum Power Voltage(Vmp/V)	31.0	31.2	31.4	31.6	31.8
Maximum Power Current(Imp/A)	17.11	17.16	17.21	17.24	17.29
Open Circuit Voltage(Voc/V)	37.3	37.5	37.7	37.9	38.1
Short Circuit Current(Isc/A)	18.19	18.24	18.30	18.35	18.39
Module Efficiency(%)	20.30	20.50	20.70	20.90	21.00
Temperature Coefficient of ISC(α-Isc)	0.04%/ºC
Temperature Coefficient of Voc(β-Voc)	-0.25%/ºC
Temperature Coefficient of Pmax(γ-Pmp)	-0.34%/ºC
STC	Irradiance 1000W/m² ,cell temperature 25ºC,AM1.5G

STC:Irradiance 1000W/m2,Cell Temperature 25°C,Air Mass AM1.5.
*Measuring Tolerance: ±3%.

ELECTRICAL CHARACTERISTICS WITH DIFFERENT REAR SIDE POWER GAIN
Backside Power Gain	10%	10%	10%	10%	10%
Peak Power Watts(Pmax/W)	567	573	578	583	589
Maximum Power Voltage(Vmp/V)	37.3	37.5	37.7	37.9	38.1
Maximum Power Current(Imp/A)	19.46	19.52	19.58	19.63	19.68
Open Circuit Voltage(Voc/V)	37.3	37.5	37.7	37.9	38.1
Short Circuit Current(Isc/A)	18.31	18.36	18.41	18.45	18.50

Detailed Photos
Certifications
Packaging & Shipping

Model	SP530-550M-72HB
Modules per box	31 pieces
Modules per 40' container	558 pieces

Note: The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing with extra material and
labor costs if your order less than a pallet, we accept any customized packing as per your requests. Our Factory
