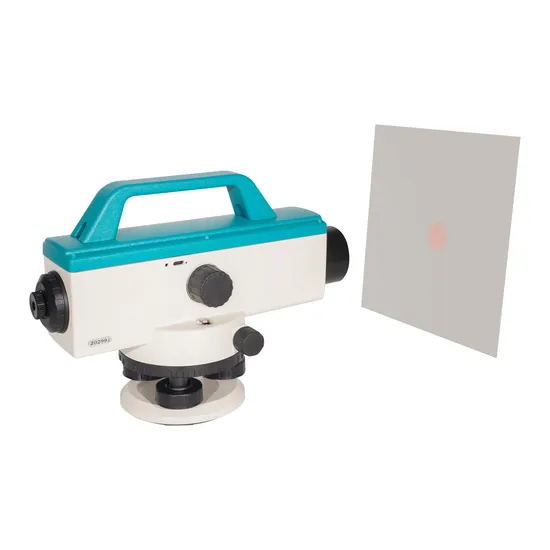

| Product Name | Laser level |
| Standard Deviation for 1km Double-run levelling | 0.7mm |
| Telescope image | Erect |
| Magnification | 48X |
| Clear Objective Aperture | 45mm |
| Field of View | 1°20′ |
| Shortest Focusing Distance | 0.65m |
| Stadia Multiplying Constant | 100 |
| Stadia Additive Constant | 0 |
| Sensitivity of Circular Level | 8′/2mm |
| Graduation lnterval of Circle | 1°or1gon |
| Compensator type | X-shaped wire suspension air-damping |
| Working Range | ≥±15′ |
| Setting Accuracy | ±0.3″ |
| Dimensions | 295X140X200mm |
| Weight | 2.4kg |
| Connecting size to tripod | M16 or 5/8″ |
| INGRESS PROTECTION | IP66 |
| Handle | YES |
| The wavelength of the laser | 635nm |
| Effective range | 200m(night) |
| Spot size | 5mm/100m.22 |
| Deviation between point center and visual axis | ≤ 5 |
