Basic Info.
Channel
Straight Through Type
Structure
Floating Ball Valve
Function
Blow-Down Valve, Relief Valve, Bypass-Valve
Temperature
Normal Temperature
Application
Industrial Usage, Water Industrial Usage, Household Usage
Certificates
ISO9001-2015, CE
Thread Standard
BSPT, Bsp, NPT etc
Casting
Wax Lost Investment Casting Technology
Transport Package
Cartons & Plywood Cases
Specification
DN6(1/8") to DN25(1")
Production Capacity
50000piece/Month
Product Description

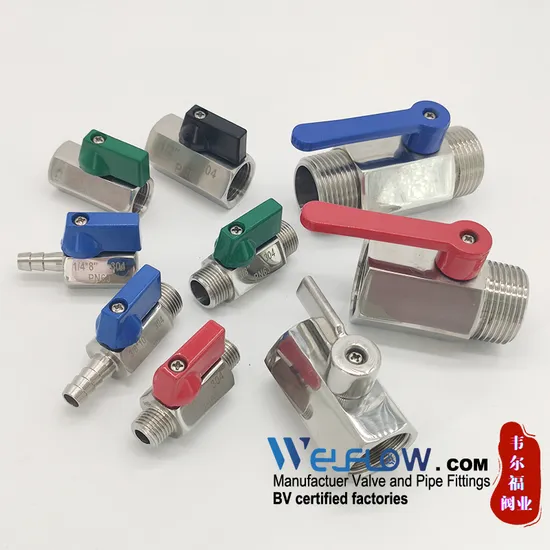

Stainless Steel Mini Ball Valve
Stainless Steel Mini Ball Valve lies in the name itself, and it is always in mini size from 1/8" to 1"
Stainless Steel Mini Ball Valves always with the polished outside surface.
It includes FF Stainless Steel Mini Ball Valve, MF Stainless Steel Mini Ball Valve & MM Stainless Steel Mini Ball Valve in SS304/SS316 material.
Advantage: It could be installed in small space areas.
Description:
1. Max Pressure: 1000PSI/PN63
2. Reduced Bore
3. Investment Casting Body
4. Blow-Out Proof Stem
5. Sanitary Design
6. Material: CF8(SS304)/CF8M(SS316)
7. End Connection: BS21(BSPT/BSP), ANSI B2.1(NPT), DIN259/2999, ISO228
Stainless Steel Mini Ball Valve Female Thread (FF)
Dimension(mm)
| Size | D | H | W | L |
| 1/8" | 7 | 26.5 | 22.8 | 42 |
| 1/4" | 7 | 26.5 | 22.8 | 42 |
| 3/8" | 7 | 26.5 | 22.8 | 42 |
| 1/2" | 9.2 | 28.3 | 22.8 | 46 |
| 3/4" | 12.5 | 31.5 | 22.8 | 54 |
| 1" | 15 | 34 | 22.8 | 65 |
Stainless Steel Mini Ball Valve Male & Female Thread (MF)Dimension (mm)
| Size | D | H | W | L |
| 1/8" | 7 | 26.5 | 22.8 | 40 |
| 1/4" | 7 | 26.5 | 22.8 | 40 |
| 3/8" | 7 | 26.5 | 22.8 | 40 |
| 1/2" | 9.2 | 28.3 | 22.8 | 46 |
| 3/4" | 12.5 | 31.5 | 22.8 | 54 |
| 1" | 15 | 34 | 22.8 | 65 |
Stainless Steel Mini Ball Valve Male Thread (MM)
Dimension(mm)
| Size | D | H | W | L |
| 1/8" | 7 | 26.5 | 22.8 | 50 |
| 1/4" | 7 | 26.5 | 22.8 | 50 |
| 3/8" | 7 | 26.5 | 22.8 | 50 |
| 1/2" | 9.2 | 28.3 | 22.8 | 58 |
| 3/4" | 12.5 | 31.5 | 22.8 | 71.5 |
| 1" | 15 | 34 | 22.8 | 83 |
Stainless Steel Mini Ball Valve Female Hosetails
Dimension (mm)
| Size | D | H | W | L | d | I | D1 |
1/8"
& 1/4"
& 3/8" | 7 | 26.5 | 22.8 | 48.5 | 5 | 18.5 | Φ7 |
| 7 | 26.5 | 22.8 | 48.5 | 5 | 18.5 | Φ8 |
| 7 | 26.5 | 22.8 | 50.5 | 6.5 | 20.5 | Φ10 |
| 7 | 26.5 | 22.8 | 55 | 7 | 25 | Φ12 |
| 1/2" | 9.2 | 28.3 | 22.8 | 52 | 5 | 18.5 | Φ8 |
| 9.2 | 28.3 | 22.8 | 58 | 8 | 25 | Φ10 |
| 9.2 | 28.3 | 22.8 | 58 | 8 | 25 | Φ12 |
Stainless Steel Mini Ball Valve Male Hosetails
Dimension(mm)
| Size | D | H | W | L | d | I | D1 |
1/8"
& 1/4"
&3/8" | 7 | 26.5 | 22.8 | 58.5 | 5 | 18.5 | Φ7 |
| 7 | 26.5 | 22.8 | 58.5 | 5 | 18.5 | Φ8 |
| 7 | 26.5 | 22.8 | 60.5 | 6.5 | 20.5 | Φ10 |
| 7 | 26.5 | 22.8 | 65 | 7 | 25 | Φ12 |
| 1/2" | 9.2 | 28.3 | 22.8 | 64.5 | 5 | 18.5 | Φ8 |
| 9.2 | 28.3 | 22.8 | 71 | 8 | 25 | Φ10 |
| 9.2 | 28.3 | 22.8 | 71 | 8 | 25 | Φ12 |
| QUESTION? | ANSWER |
| 1. Are you a factory? | Yes, Welflow is a factory located in Wenzhou, Zhejiang, China. |
| 2. Do you have any requirements of MOQ? | No limited to MOQ but the difference in unit price. |
| 3. Payment Terms | Typically 30% T/T as deposit, 70% against copy of BL/ Or balance L/C at sight. |
| 4. Nearly Sea Port | Ningbo or Shanghai Port |
| 5. Terms: | FOB Ningbo/Shanghai, CIF, FCA, etc. |
| 6. Delivery Time: | Typically, it is 30-35 days after receiving the deposit payment. However, almost all of the items we have stock in 304. |
| 7. Could you accept color Marks or Color Boxes? | Yes, both are acceptable; we have experience with them. |
| 8. Could you accept marking our logo on the products? | Yes, on the handle or the bodies, both are okay.
1. Print on the Handle (NO MOQ requirements)
2. Laser Marking. (NO MOQ requirements)
3. Carvings(NO MOQ requirements)
4. Casting on the bodies (Has MOQ requirements) |
| 9. Do you have Material Certificates? | Yes, if required, Each item will be laser marked with Heat NO and the material certificates. |
| 10. How do you deal with customer complaints, such as quality issues? | This is an issue we take very seriously. As long as it is confirmed to be a quality issue, we will take full responsibility.
1. exchange or refund is acceptable. It mainly depends on how you need to deal with it. |
>>
