Huaying Air Color Steel Plate Forming Conveyor Manufacturers Aerial Work Machine Color Steel Tile Pressing Machine

Product Description

Product Description

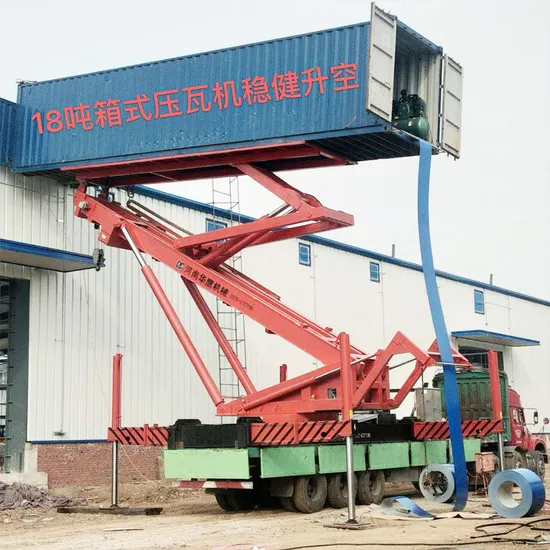

High-altitude tile press is a kind of steel structure color steel tile air forming and construction equipment using high-level automatic control software for information control, the equipment will lift the Angle bending tile press machine to the height of the factory building for air construction, the whole equipment sets tile forming, conveying, cutting as a whole, to provide a complete ultra-long span color steel tile for the steel structure plant.

Sheet material for roof and wall panels	Color steel plate, galvanized plate, aluminized manganese plate
Suitable for molding press	All Kok Chi series and Kok Chi, fritillary plate, roof plate forming machine, motor + reducer drive, hydraulic shear type
Add-on crane function (optional)	Hydraulic drive, can lift 8T
Required voltage and power	380V, 18KW
Thickness of sheet material for roof and wall panels	0.3 mm - 1.0 mm
Specifications after installation of tile press: length × width × height	12.6 m x 2.4 m x 4.2 m

Equipment features
1. the product can achieve the color steel tile directly pressed, transported to the top of the plant;
2. independently designed and produced a set of unwinding, tile pressing, lifting, conveying as one of the new high-quality products;3. the vehicle adopts double remote control, can realize the panel and remote control two modes of operation for full automatic control;
4. standard configuration bearing capacity of 8 tons, another bearing capacity of 12 tons, 20 tons platform can be customized according to demand;5. reduce the construction of tile personnel, improve work efficiency, reduce the incidence of accidents;
6. reduce the cost of use, more cost savings than the previous ground tile, early investment, later can reduce more costs;
Company Profile
Henan Huaying Machinery Equipment Co., Ltd. has a variety of models to choose from. Lifting 17 meters bearing 8 tons of high-altitude shingle equipment, lifting 18.5 meters bearing 8 tons of high-altitude shingle equipment, lifting 21 meters bearing 8 tons of high-altitude shingle equipment, lifting 18.5 meters bearing 11 tons of high-altitude shingle equipment, lifting 23 meters bearing 11 tons of high-altitude shingle equipment, etc., Huaying Machinery in the field of high-altitude upper tile equipment technology constantly design innovation, research and development improvement to meet the production needs of customers; A variety of equipment produced by the company has obtained national patents.
Our aim is: excellent product quality, perfect service system, good company reputation, warm service attitude.
"Business letter based, sincere ambition to go the world" for the purpose, in the spirit of mutual benefit and major customers to establish long-term friendly partnership. We are willing to excellent product quality, timely delivery, perfect after-sales service to meet customer needs, and friends from all walks of life to create brilliant!
Recommend For You
Crawler type high altitude tile press Reverse ceiling equipment Crawler spider hanger
Exhibition dynamics


Certifications

FAQ
Q1: High altitude tile press working noise?
A1:Lack of lubrication in key parts, resulting in serious friction between parts resulting in abnormal sound; Solution: lubricate the key parts.
Q2:High-altitude tile machine can not lift up?
A2:Hydraulic system damage, or due to hydraulic oil problems; Solution: Find professional engineers to solve.
Q3:The phenomenon of sinking of the high-altitude tile press?
A3:Due to the loss of liquid pressure, or the leakage of hydraulic valves and seals; Solution: Replace the damaged parts and replace the hydraulic valves and seals.

---
