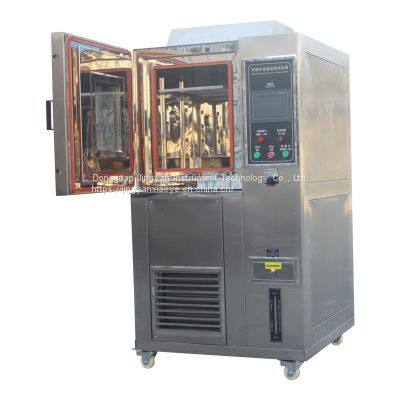

Environmental Test Chamber Humidity Temperature Test Chamber High-Low Temperature Test Chamber
This Chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.
Model
| JY-80L
| JY-150L
| JY-225L
| JY-408L
| JY-800L
|
Inner Size
W×H×D(cm)
| 40×50×40
| 50×60×50
| 50×75×60
| 60×85×80
| 100×100×80
|
Outside Size
W×H×D(cm)
| 93×155×95
| 100×148×106
| 117×166×91
| 140×176×101
| 170×186×111
|
Volume (V)
| 80 L
| 150L
| 225L
| 408L
| 800L
|
Temp and Hum Range
| A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C
RH20%-98%
|
Function
| Fluctuation
| ±0.5°C ±2.5%RH
|
Deviation
| ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH)
|
Controller
Analytical
Accuracy
|
±0.3°C ±2.5%RH
|
Wind Cycling Way
| Centrifugal fan-broadband type forced air circulation
|
Refrigeration Way
| Single stage compression refrigeration
|
Refrigerator
| French Tecumseh
|
Refrigerants
| R4O4A USA DuPont environmental protection refrigerant(R23+R404)
|
Condensing Way
| Air-cooled or water-cooled
|
Water Supplying Way
| Automatic cycling water supply
|
Safety device
| Non- fuse-switch(compressor overload,
refrigerant high low voltage,
over-humidity and temperature protection,
Protection switch,fuse stoppage warning system
|
