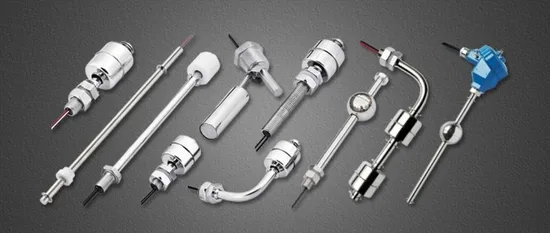

Magnetic Float Level Sensor Magnetic Reed Switch Gauge

Product Description

1. Product description
RongSin offers a complete line of standard level sensors and configured models, These products continue to meet the needs of applications in aborad markets, at competitive prices, also RongSin Company offers the capability to design specific liquid level switches for OEM applications that require considerations in materials such as PP, NBR, PVDF, Nylon, SUS304, SS316L, configurations and system interfacing. We have 20 years of experience in liquid level switch applications ina variety of environments and installation configurations. High reliability of the mangentic reed switch assures repeatability at an economical price. Our design experience and flexible manufacturing techniques also offer customers many value added design and sssembly options to reduce their product cost.
2. Working principle:
The level sensor is mainly composed of a reed switch and a float, which contains magnetic material, one or more reed switches in a closed non-permeable metal pipe or plastic tube, and then passes the conduit through one or more With a magnetic material of the float, and the use of fixed double-ring control float and reed switch in the relevant position, the float with the liquid rise or fall, the use of the ball near the beginning of the magnetic spring contacts, For level control or indication (when the float is close to the reed switch is turned on; off when the switch is off).
3. Operating Principle Liquid level sensors mainly consists of magnetic Reed switch and floater . There is a magnetic material in the floater that will trigger the magnetic Reed switch as the level of the liquid tested moves up and down , and thus detecting the position of the liquid level.
4. Characteristic Liquid level sensors used imported components and is provided with characteristics such as compact size,simple working principle, highly reliable and inexpensive.Floating balls with different materials and specificationare available for selection .Electrical parameters can be changed in accordance with client's requirement,and special specification can also be customized. * No standby power is needed* Zero power consumption* Compact Size* Simple operation principle* Highly reliable, accuracy and repeatability Floating balls with different materials and specifications are available for selection, electrical parameters canbe changed in accordance with client's requirement and specification can also be customized.
5. Application field This product can be used in liquid level control for watering machine , water heater , solar energy ,airconditioning , moisturizing machine , bathroom utensil , vending machine ,oil tank , water tower and chemical industrial ,etc. It will bewidely applied in motor vehices ,industrial equipment , agricultural equipment and household electrical appliances in the Future.

---
