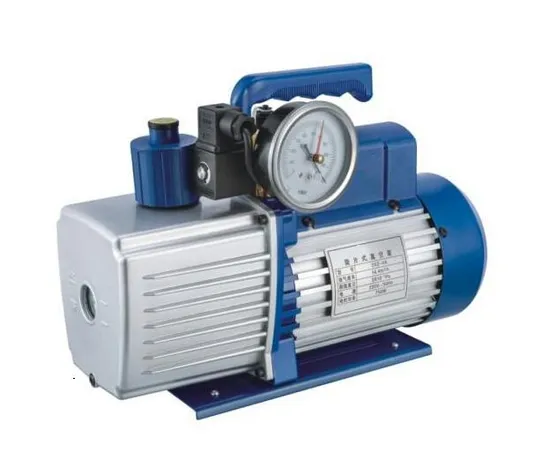

Vacuum Pump, Duoble Stage, with Solenoid Valve and Gauge

Product Description

Vacuum Pump with/without solenoid valve and Vacuum gauge
Application:
1. RESOUR brand vacuum pump is compact, light and attractive in design.
2. It uses the big starting torque and is specially designed for low temperature environment.
3. It is guaranteed start normally in winter's low temperature.
4. It is applicable to vacuum packaging, vacuum freeze
5. It widely used in food packaging, scientific research, medical treatment, electronics, chemicals, medicine and laboratory of universities and colleges, automobile reparation, gas analysis, medicine mechanism, printing mechanism and other vacuum evacuations.
Single Stage:

Item NO.		VP115(VP-1)	VP125(VP-1.5)	VP135(VP-2)	VP145(VP-2.5)	VP160(VP-3)	VP180(VP-4)	VP1100(VP-5)
Flow Rate	50Hz	1.5CFM	2.5CFM	3.5CFM	4.5CFM	6CFM	8CFM	10CFM
		42L/min	70L/min	100L/min	128L/min	170L/min	226L/min	283L/min
	60Hz	1.8CFM	3CFM	4CFM	5CFM	7CFM	9CFM	12CFM
		50L/min	84L/min	114L/min	142L/min	198L/min	254L/min	340L/min
Ultimate vacuum		5Pa	5Pa	5Pa	5Pa	5Pa	5Pa	5Pa
		375microns	375microns	375microns	375microns	375microns	375microns	375microns
Power		1/4HP	1/4HP	1/3HP	1/3HP	1/2HP	3/4HP	1HP
Inlet Port		1/4"Flare	1/4"Flare	1/4"Flare	1/4"Flare	1/4"&3/8"Flare	1/4"&3/8"Flare	1/4"&3/8"Flare
Oil Capacity		320ml	300ml	350ml	350ml	450ml	700ml	800ml
Dimensions(mm)		270x119x216	270x119x216	278x119x216	278x119x216	320x134x232	370x140x250	390x140x250
Weight		5.3kg	5.5kg	6.5kg	6.8kg	10kg	14kg	14.5kg

---
