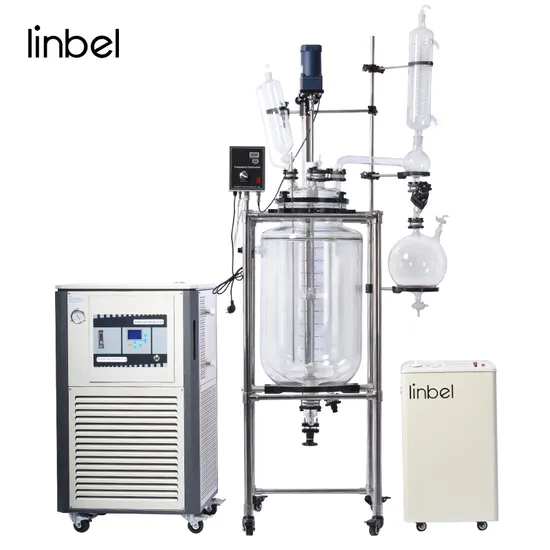

Lab Chemical Jacketed Glass Reactor 5L 10L 20L 50L100L 200L Double-Layer Glass Reactor Vessel with Heater Chiller

Product Description

Model		GR-100L	GR-150L	GR-200L
Volume(L)		100	150	200
Jacket volume(L)		30	50	60
Condensation area(m²)		1.1	1.3	1.6
Feeding tank volume(L)		2L
Recovery tank volume(L)		20
Kettle cover diameter	Impeller diameter	60# flangetype
	Temperature sensor diameter	40# flangetype
	Condenser connection	50# spherical grinding
	Liquid feed inlet	34# standard grinding×1
	Feeding tank interface	40# standard grinding
	Solid feed inlet	80# flangetype	120# flangetype
Glass assembly		High borosilicate glass 3.3
Main frame		SUS304
Stirring paddle		Paddle agitator, internal stainless steel, external polytetrafluoroethylene (PTFE), titanium
Motor		For viscous materials, high-power motors can be used
Move method		Lockable casters
Working temperature(ºC)		-120ºC~300ºC
Maximum temperature difference(ºC)		≤60
Pressure in kettle(MPa)		-0.1~0.1
Jacket pressure resistance(MPa)		≤0.1
Pressure rise rate of vacuum system		≤2kPa/h
Mixing motor power(W)		Common 200W/ explosion proof 370W	Common 400W/ explosion proof 750W	Common 750W/ explosion proof 750W
Speed regulation mode		Frequency control
Speed adjustment range(rpm)		0~600
Temperature sensor		PT100
Temperature display accuracy(ºC)		±0.1
Temperature range		Water: RT~90ºC
		Oil: RT~300ºC
Interface size of stainless steel insulation hose		½in external screw thread	¾in external screw thread
Seal material		PTFE
Installation height of discharge valve(mm)		450	330	330
Power		220V/110V,50/60Hz
Environment temperature(ºC)		5~35
Relative humidity(%)		≤ 65
Size(mm)		800W×710D×2600H	1240W×1140D×3100H
Weight(kg)		128	175	190

FAQ:
Q1. What is your products range?
• Industry water chiller, recirculating cooling chiller, rotary evaporator, alcohol recovery equipment, short path distillation kit, glass molecular distillation equipment, falling film evaporator, jacketed glass reactor and other lab equipment.
• Know more
Q2. Are you trading company or manufacturer?
• We are professional manufacture of lab equipment and we have our own factory.
Q3. Do you provide samples? Is it free?
• Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost.
Q4. Do you have warranty?
• Yes, we offer 1 year warranty for the spare part.
Q5. How long is your delivery time?
• Generally it is within 7 working days after receiving the payment if the goods are in stock. Or it is 15 working days if the goods are not in stock, depending on order quantity.
Q6. What is your terms of payment?
• Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment

---
