| @ Specification | |||

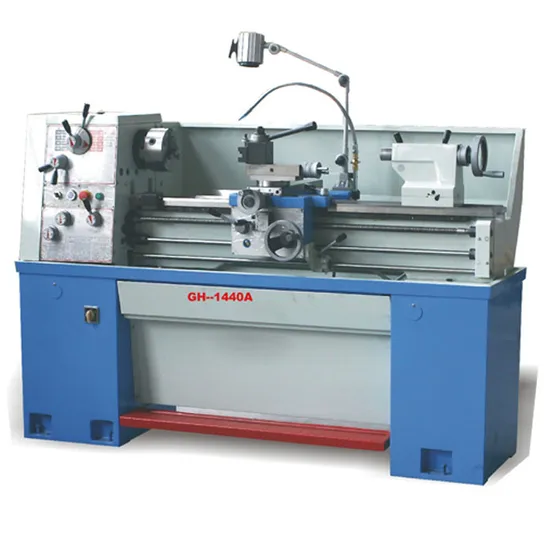

| ITEMS | GH-1440A | ||
| General capacity | Max. swing over bed | mm | φ 356(14" ) |
| Max. swing over slide | mm | φ 220(8-5/8" ) | |
| Max. swing in gap | mm | φ 506(20" ) | |
| Width of bed | mm | 206(8-1/8" ) | |
| Max. Length of workpiece | mm | 1000/750(40" /30" ) | |
| Main spindle | Taper of spindle bore | M. T. No. 5 | |
| Diameter of spindle hole | mm | φ 38(1-1/2" ) | |
| Number of spindle speeds | 16, 2 ranges | ||
| Range of spindle speeds | 45-1800RPM | ||
| Spindle nose | D1-4 | ||
| Threading & Feeding | Metric pitch threads | mm | 0.45-7.5(22kinds) |
| Whit-worth threads | TPI | 4-112(44kinds) | |
| Range of longitudinal feeds | mm | 0.043-0.653(0.0012" -0.0294" rev) | |
| Range of cross feeds | mm | 0.015-0.220(0.0003" -0.01" rev) | |
| Leadscrew | Diameter of leadscrew | mm | φ 22(7/8" ) |
| Pitch threads of leadscrew | mm | 4(8T. P. I) | |
| Tailstock | Travel of tailstock quill | mm | 120(4-3/4" ) |
| Diameter of tailstock quill | mm | φ 45(1-25/32" ) | |
| Taper hole of tailstock quill | M. T. No. 3 | ||
| Power | Power of main motor | 1.5/2.4(3HP) | |
| Coolant pump motor power | kW | 0.04(0.055HP) | |
| Overall dimensions (L× W× H) | mm | 1920× 740× 1180 | |
| Packing size of lathe (L× W× H) | mm | 2020× 900× 1560 | |
| Net weight | kg | 750(1650 lbs) | |
| Gross weight | kg | 880(1950 lbs) | |
