Floor-Standing for Tube or Wires by Folding Labels in Half Automatic Labeling Machine

Product Description

Product Parameter

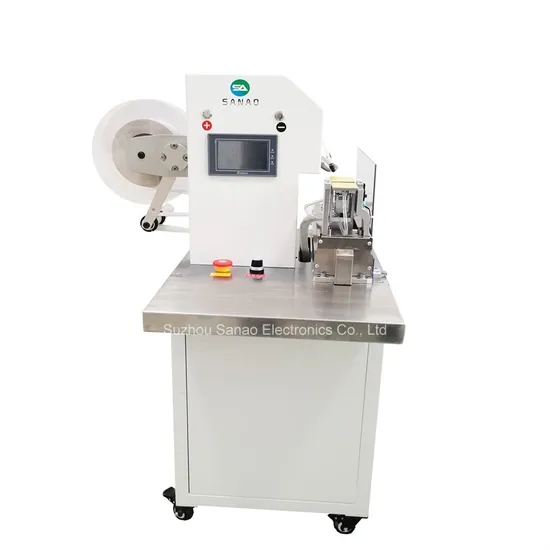

SA-L30 Automatic wire labeling machine ,Design for Wire Harness Flag Labeling Machine, Machine have two labeling method , One is Foot switch start , The other is Induction start .Directly put wire on machine , Machine will labeling automatically . Labeling is Fast and accurate.

For labeling, it is best to use Glassine Paper label,The labels are easy to peel off and easy to label, which is also a
conventional label paper.Applicable label size is Width 10-56 mm, length 40-160mm, Also can Customized fixture via customer's label . Applicable label is self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, etc.;
Applicable wires: earphone cable, USB cable, power cord, air pipe, water pipe, etc.;
Application examples: headphone cable labeling, power cord labeling, optical fiber cable labeling, cable labeling, tracheal
labeling, warning label labeling, etc.
Advantage:
1.Widely used in wire harness,tube ,mechanical and electrical industries;
2.Wide range of applications, suitable for labeling products of different specifications; 3.Easy to use, wide adjustment range, can label products of different specifications; 4.High stability, advanced electronic control system consisting of Panasonic PLC + Germany label electric eye, support 7×24-hour operation.

Model	SA-L30
Applicable wire/tube range	φ1-3MM ,φ2-5MM,φ3-7MM,φ4-10MM ( Machine match one set fixture )
	Out of range customisation is possible
Applicable label size	standard model length: 30mm~170mm (need to customize beyond the scope)
Applicable label size	standard model width: 5mm~56mm; (need to customize beyond the scope)
Equipped with standard positioning ruler	200mm (need to customize beyond the scope)
Max label roll outer diameter	240mm
Max label roll inner diameter	76mm
Labeling accuracy	±0.2
Labeling speed	1500-1800pcs/H(depending on label size and manual operation speed)
Applicable product size	round wires, flat wires, water pipes and other product
Dimensions	about 580mm*680mm*1000mm (length*width*height)
Weight	about 86kg
Power supply	220V/50HZ, 0.25KW
Air pressure	4-6bar
Relative humidity	(20-90)%RH
Ambient temperature	+5-+40ºC

Product Display
Related Products
Company Profile
Our Certification
Packaging And Shipping
After Sales Service

Efficient and professional after-sales service 1. All Machine with English manual and tutorial video . 2.we will arrange profession Engineer to provide Lifetime technical service if you have any question * Thanks for your inquirement, Please contact our sales staff that he will provide professional introduction for you
