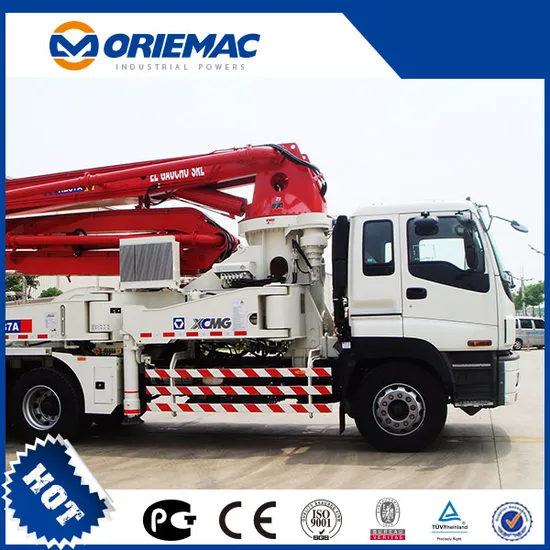

XCMC High Quality Concrete Machine Concrete Pump HB44 for Sale
Item Parameter
| Outline dimensions (Length´ Width ´Height)mm | 12310×2500×3990 |
| Fuel type | Diesel |
| Engine emission standard | Euro III |
| Displacement/Powerml/kW | 12100/279 |
| Steering type | Steering wheel |
| No. of axle | 4 |
| Wheel basemm | 1793+4407+1370 |
| No. of spring leaf (front/rear) | 2+3/9 |
| Tire | 12.00R20 |
| Track (front/rear)mm | 2034/1831 |
| No. of tire (exclude spare tire) | 12 |
| Total vehicle weightkg | 36500 |
| Crew in cab | 2 |
| Approach angle/Departure angle | 21°/12° |
| Front overhang /Rear overhangmm | 1360/3380 |
| Max. speedkm/h | 94 |
| Min. ground clearancemm | 270 |
| Max. grade-ability | 38% |
| Fuel consumption per 100kmL/100km | 40 |
| Chassis | Model | FM12 |
| Grade | |
| Manufacturer | VOLVO |
| Engine | Model | D12 |
| Manufacturer | VOLVO |
