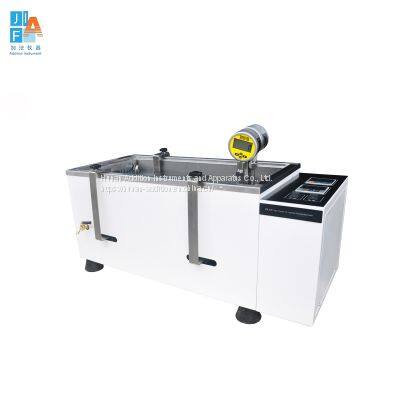

Vapor Pressure of LPG Tester (LP-Gas Method)
Product model: JF6602
Product Description
This instrument is mainly suitable for detecting liquefied petroleum gas whose boiling point is higher than 0℃, the volume content of hydrocarbons is less than 5%, and its vapor pressure is not more than 1550KPA at 37.8℃. When the instrument is used, the cooled sample is charged into the oxygen bomb of the vapor pressure measuring device, and the oxygen bomb is connected to the gas detector.
Technical Parameter
1. Applicable standard: ASTM D1267 ISO4256 GB/T6602
2. Temperature control method: high-quality PID digital display temperature controller
3. Temperature control accuracy: normal temperature~70±0.1℃
4. Oscillation mode: horizontal automatic oscillation without manual operation
5. Working unit: two oxygen bombs
6. Pressure correction: external precision pressure adjustment instrument can be connected, and the instrument has a fine-tuning function inside
7. Connection method: high-quality stainless steel quick connector connection, no leakage
8. Working power supply: AC220,240V/ 50,60HZ
9. Power of the whole machine: 1500W
10. Instrument size: 900*400*460mm
11. Net weight: 48KG
Main Feature
1. Microcomputer controller, PID function, digital display temperature (continuous display during testing), degree 0.1°C, Pt100 RTD temperature probe;
2. The instrument is made of cold-rolled steel plate, and the surface is treated with electrostatic spray, which is corrosion-resistant and easy to clean.
3. The instrument welding adopts butt welding technology, no solder joints, beautiful and generous appearance.
4. The instrument adopts imported pressure transmitter with high pressure display.
5. All stainless steel inner tank water bath to prevent rust.
6. Imported quick connector, plug and use, no leakage, easy operation.
>>
