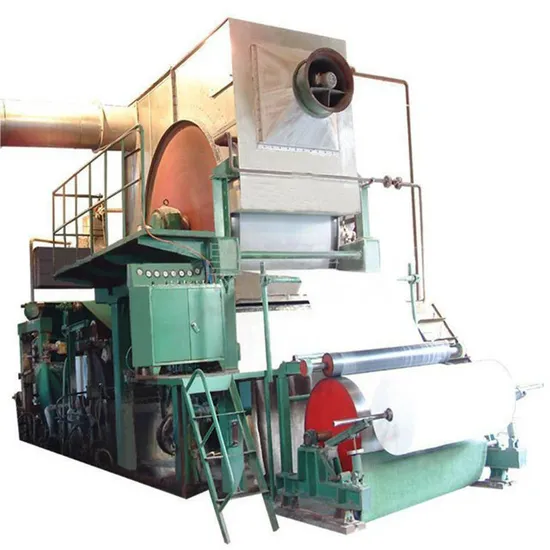

Dingchen 1880 Toilet Paper/Tissue Paper Making Machine with Capacity

Product Description

Dingchen toilet tissue paper making machine 5TD using wood
Product Description

Technical parameter
1.Raw material: wood / bamboo
2. Output paper: tissue paper
3. Output paper weight: 14-30g/m2
4. Net paper width: 1880mm
5. Capacity: 5T/D (24hours)
6. Working speed: 60-130m/min
7. Designing working speed: 180m/min
8. Wire width: 2300mm
9. Rail gauge:2900mm
10. Drive way: A/C inverter speed-adjusting, sectional drive
The structure and specifications of paper machine
1. Cylinder mold part
Φ1500mm×2300mm×2900mm stainless-steel cylinder mold 1set. Φ450mm×2300mm×2900mmcouch roll 1 set, coated by rubber, rubber hardness 38±2SR, cylinder mold vat 1 set

2. Dryer part
Φ2500mm×2300mm×2900mm alloy dryer cylinder 1 set, with double-layer breath exhaust hood, Φ550mm×2300mm×2900mm touch roll 1 set, coated by rubber, rubber hardness 90±2SR, pneumatic scraper blade 2 sets, pneumatic pressure device

3. Winding part:
1880 mm cooling winding drum 1 set
Main equipment for stock preparation

No.	Item
1	5m3 hydra-pulper
2	380mm pulp refiner
3	606 sand remover
4	700 propeller
5	Bleacher
6	pressure screen
7	-100 pulp pup
8	-150 water pump
9	Electric operation cabinet

Wastepaper to produce toilet paper technological process:
Waste paper or primary pulp ------ Hydrapulper ------ Vibrating screen ------ Pulp tank ------ Potcher ------ Pulp tank ----- Pulp grinder ------ Pulp tank ----- Centrifugal screen ----- Toilet paper machine ---- Rewinding perforating embossing machine ----- Paper saw ---Pack

(II). Machine list of paper making line:
No.	Equipment			Qty (SET)
1	1880mm single-cylinder single-wire and single-felt toilet paper machine.			1
2	Exhaust hood of drier can (Duplex)			1
3	φ800 Screw type ventilator			1
4	mesh vat			1
5	15 Type roots pump			1
6	Suction box			1
7	Air pump			1
8	Electric converting control cubicle			1
9	the whole set of work bench			1
(III). Motor list of paper making line:
No.	Electromotor	Power(KW)	Qty(set)	Total power(kw)
1	First cylinder part	30	1	30
2	Winding machine	4	1	4
3	Screw type ventilator	4	1	4
4	Air pump	7.5	1	7.5
5	Vacuum pump	22	1	22
Total
III. Pulp making line
(I). Machine list of pulp making line:
No.	Equipment			Qty (SET)
1	5m3 High consistency hydrapulper			1
2	2m2 high vibrating screen			1
3	35m3 potcher			3
4	380 Double disks refiner			2
5	Pressure screen			1
6	700 Thruster			5
7	606 desander 12 pcs			1
8	Alternating pulp pump-150			4
9	Alternating pulp pump-100			6
10	Alternating pulp pump-200			2
IV. Further processing making line:
No.	Equipment			Qty (SET)
1	1880mm rewinding, perforating embossing machine			1
2	Slitter			1
3	sealing machine			1
V. Boiler
No.	Equipment			Qty (SET)
1	2 ton / hour boiler			1

Related Products
Waste paper pulp machine production line
Automatic corrugated box production line
Corrugated paper making production line
Fluting paper pulp making production line
Coated White Board Paper production line
Honeycomb Paper making production line
testliner paper making production line
Paper plate making production line
tissue paper making production line
toilet paper making machine line
kraft paper making machine line
boxboard paper machine line
Paper coating machine line
Napkin paper machine line
OCC line
Company Information
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.have won customers' consistent affirmations.We have a large scale of products regarding paper machinery, including:A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressurescreen, screen basket, pulp pump etc.)B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier papermachine, head box, cylinder mould, dryer cylinder, roller etc.)C.Paper making finished devices (Paper calender, pope reel,size press,paper rewinder etc.)Meet customers' requirements and exceed customers' expects.We wish to found long-termcooperation with your companyTechnical Advantage1.Experienced producing team2.Advanced technological strengthProduct Advantage1.Through the international authentication2.The same material the most preferential price3.A lot of varieties for the customer to chooseService Advantage1.Technical consultation2.Project evaluation3.Detailed design of factory4.Installing and testing the whole production line5.Training engineers and workers6.Supplying spare parts for long timeThe business process1.send your requirements:raw material,capacity,paper grammage2.we make the solution to you3.come visit and negotiate4.sign contract5.first payment6.production7.pay spare money8.delivery9.installation ,training,test run10.production consultlation
