| ITEM | VALUE |
| Model | WE67K 135T3200 6+1Axis |
| Pressure | 135ton |
| Max bending length | 3200mm |
| Max bending thickness for 3m sheet | 5mm |
| Column distance | 2600mm |
| Slide stroke | 200mm |
| Max opening height | 480mm |
| Throat depth | 400mm |
| Main motor power | 11kw |
| Machine size | 3850X1850X2600mm(LxWxH) |
| Weight | 9000kg |
| Axes | Y1, Y2, X, R ,Z1 ,Z2 |

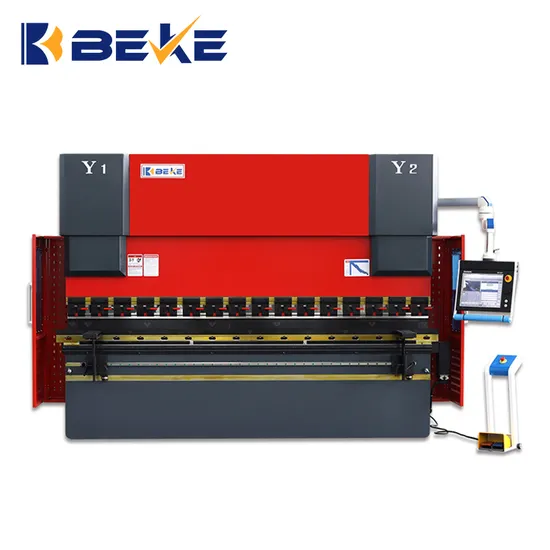

| WE67K CNC sheet metal press brake with streamlined design ,high speed ,high precision ,high rigidity. Electro hydraulic servo system,full loop controlling the synchronization of the upper slider. Mechanical compensation on crowning of worktable and deformation compensation on throat, ensuring good bending strength and precision. Backgauge is driven by digital AC servo motor,moved with ball screw,guided by linear guide. Now the press brake can provide variety of choicesand features for the products and function, to realizethe optimal bending process and solutions. | |
| DELEM DA69T CNC System Features: 17" high-resolution color TFT(touch screen control) 2D/3D graphical touch screen programming mode 3D visualisation in simulation and production Sensor bending & correction interface Exporting of computed flat patterns as DXF files(Profile-T-2D) Storage capacity 1 GB - 3D graphics acceleration Delem Modusys compatibility (module scalability & adaptivity) Automatic tool selection and machine tooling 3D Simulation with automatic best bend sequence identification with collision detection | |
