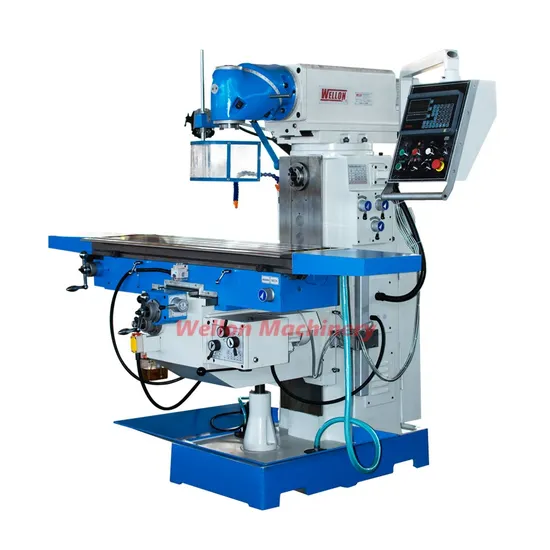

Universal Milling Machinery with Table Swivel 45 Degree XL6432cl

Product Description

Products Description:
Performence Features:
Logical, clearly arranged gearshift for speed change
Hardened and polished guideways guarantees top accuracy
Setting of the required feed speed by potentiometer on the contro panel
Digital readout for x-, y- and z-axis come standard
Finely graduated feeds in all axis, driven by servomotor
Universal mill head system „Huron" adjusts to various angles
Complete with rapid feed in x-, y- and z-axis to reduce downtime
Optimal adjustments of spindle speed and feed allow for economic machining of various materials
Central lubrication in x- and y-axis comes standard Technical parameter:

Specifications	Unit	XL6432CL
Table size	mm	1600×320
Table travel (X/Y/Z)	mm	1300/320/450
Table feed(X/Y/Z)	mm/min	30~750/20~500/15~375
Spindle taper		7:24 IS050 (H) 7:24 IS040 (V)
Arm travel	mm	550
Distance between spindle nose and table surface	mm	196-656
Distance between horizontal nose and table surface	mm	20-470
Distance between spindle axis and arm surface	mm	245
Spindle speed range	r.p.m	12steps 60-1750 (V) 12steps 60-1800 (H)
T-slots(NO./width/pitch)	mm	3/18/80
Main motor power	Kw	5.5 (H) 4 (V)
3 to feed Ac servo motor torque	N.m	10
Overall size	mm	2520×2100×2000
Net weight	kg	2750

Rotary talbe can be ordered

Model	Table size	Max table travel-X/Y/Z	Max rotary angle of table	Distance between spindle center line and table surface	Distance between spindle nose and table surface
XL6432W	1325×320	750/320/400	±45°	(H)20-420	(V)190-590
XL6432CW		1100/320/400
XL6432CLW	1600×320	1300/320/400

Standard Accessories:
Draw bar
Coolant device
Coolant tray
LED machine light
Universal mill head
Spindle brake
Ball screws in all axis
Automatic central lubrication
Mill arbors
Tools
Optional Parts:
3-axis digital readout
Mill chuck set
Machine vice
Horizontal & vertical rotary table
Clamping kit set 58-pcs
Universal dividing head
