US$65,000.00-80,000.00
|
1 Set
(MOQ)
|
Basic Info.
Material Processed
Plastic Bottle
Computerized
Computerized
Certification
ISO9001:2008, CE
Suitable for
Pet Bottles, Bottle Bricks
Output
500-1000-1500-2000kg/H
Final Product
Clean Pet Flakes
Transport Package
Wrapping Film, Wooden Base
Production Capacity
500kg/H~2000kg/H
Product Description

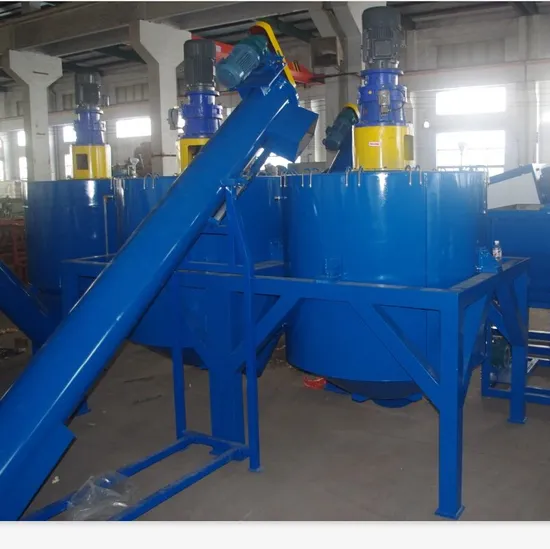

pet wash recycling machine
This machine is used to recycle the waste pet bottles and transforms them into clean PET flakes. And the flakes can be further processed and reutilized with high commercial value. The production capacity we can make on the PET Bottle washing and recycling line can be 500kg to 2000kg per hour.
Features:
1. Coordinating the production line with follow programmed work (granulating system), and it will make waste and dirty PET bottles to be clean PET flakes material and in order to producing ployester fiber
2. Friendly control system (PLC integrated & separated control on each machine) and touch screen panel, easy for operation, monitor and emergency stop.
3. All parts contacting with plastic material and water are made of high-quality 304 and touch screen panel, easy for operation, monitor and emergency stop.
4. The whole production line can be designed on the basis of how dirty the flakes are, and make sure of the quality of the final products.
Configuration of pet wash machine:
No.
| Machine Name
| Note
|
1
| Bale breaker
| for bottle bricks
|
2
| Belt Conveyor
| adjustable
|
3
| Metal detector
| select metal
|
4
| Label Remover
| Remove the label from the bottles.
|
5
| Manual Sorting Belt
| adjustable
|
6
| Belt Conveyor
| adjustable
|
7
| Crusher
| Blade metal:alloy(9CrSi or SKD-II)
|
8
| Screw Loader
| Made of Stainless steel
|
9
| Hot Washer
| Made of Stainless steel ,can put some soda
|
10
| High-speed Friction Washer
| Made of Stainless steel
|
11
| Float Washing Tank x2sets
| Single-screw or Two-screw
|
12
| Dewatering Machine
| Vertical or Horizontal
|
13
| Drying system
| Made of Stainless steel
|
14
| Storage hopper
| Normally 1000L
|
15
| Flakes Pneumatic Separating Machine
| New style label remover for flakes
|
>>
