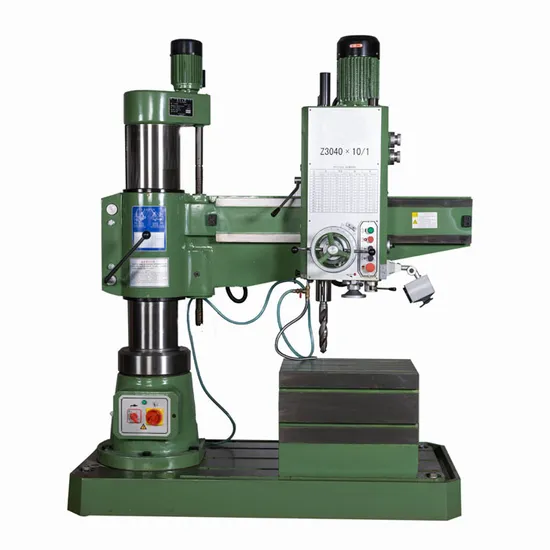

Chinese Used Round Column Vertical Radial Drilling Machine Z3040X10 Supplier

US$3,768.00 1 Piece (MOQ)

Basic Info.

Model NO.

Z3040X10

Structure

Radial Drilling Machine

Layout

Vertical

Controlling Mode

Artificial

Number of Shaft

None

Hole Diameter

<50mm

Automatic Grade

Manual

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Name

Radial Drilling Machine

Max Drilling Capacity (mm)

40mm

Spindle Feeds (mm)

0.1, 0.16, 0.25

Spindle Taper (mm)

Mt4

Spindle Speeds Steps (mm)

Spindle Speed

75-1200rpm

Distance Spindle to Table

320-1180mm

Distance Spindle to Column

350-1100mm

Spindle Travel

180mm

Arm Rotary

180degree

Main Motor

2.2kw

Lifting Motor

0.75kw

Weight

1600kg

Transport Package

Wood Case/Plywood Case

Specification

CE, ISO9001

Trademark

UNI-TECH

Origin

China

HS Code

84595900

Production Capacity

100sets/Month

Product Description

Product Description

chinese used round column vertical radial drilling machine Z3040X10 supplier
Specifications
Z3035 radial drilling machine:
1. Mechanical Transmission
2. Mechanical Clamping
3. Mechanical Variable Speed
The main feature:
1. Double pillar design, make rocker arm lighter, high efficiency.
2. Control system focused on spindle box, variable speed flexible and convenient.
3. Feed mechanical electrical is double insurance, safety. Avoid error operating.
4. Foundation big purchases adopt high quality material molding casting, after the aging treatment, use high pr ecision machine processing, with extremely high accuracy.
5. The guide face hardened, the spindle is nitriding process, prolong service life.
6. Spindle reversing, stopping (braking), variable speeding, neutral position, single handle control, convenient operation. Product Parameters

Main parameter	Z3035×13	Z3035×10
Max. drilling diameter(mm)	35	35
Distance of spindle center line to column's generatrix (mm)	300-1300	300-1000
Distance of spindle nose to the base face	320-1020	250-1020
Spindle head horizontal travel	1000	700
Spindle taper	Morse No.3	Morse No.4
Spindle speed scope and grades	50-2350 12 steps	50-2350 12 steps
Feed and grades	0.13-0.54 4 steps	0.13-0.54 4 steps
Spindle travel mm	250	250
Power of main motor kW	3	3
Net weight of the machine kg	1780	1600
Working area of base (mm)	1350×550	1050×450
Overall dimension of base ( L/W/H) mm	2105×800×2320	1805×800×2320

Model	Z3032×10	Z3040×10	Z3040×11	Z3040×13
Max drilling cpacity(MM)	32	40	40	40
Distance from spindle center to column(MM)	max:980 min:220	max:900 min:300	max:1000 min: 300	max:1200 min:300
Distance from spindle nose to base(MM)	max:1000 min:260	max:1050 min:60	max:1050 min:150	max:1100 min:230
Spindle horizontal movement	700	700	700	700
Spindle travel(MM)	120	270	270	270
Spindle taper	MT4	MT4	MT4	MT4
Spindle speed(R/MIN)	6 steps 108-1000	12 steps 46---1220	12 steps 46---1220	12 steps 46---1220
Column diameter(MM)	180	200	220	240
Spindle feed (MM/R)		3 steps 0.10 - 0.25	3 steps 0.10 - 0.25	3 steps 0.10 - 0.25
Main motor(KW)	1.5/2.2	1.5/2.2	1.5/2.2	1.5/2.2
Lifting motor(KW)	0.75	0.75	0.55	1.1
weight(KG)	650	1100	1300	1500
dimension(mm)	1400×680×2100	1500×750×2150	1650×780×2150	1830×830×2250

Detailed Photos
