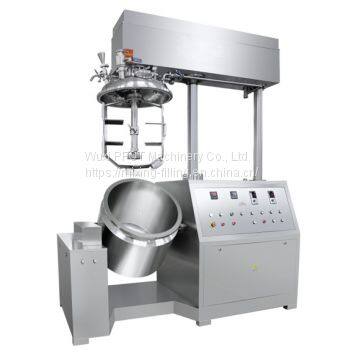

| ZJR-5 | ZJR-10 | ZJR-30 | ZJR-50 | ZJR-100 | ZJR-150 | ZJR-250 | ZJR-350 | ZJR-650 | ZJR-1000 | ZJR-1300 |
| Emulsifying Pot | Design Volume(L) | 6 | 10 | 30 | 50 | 100 | 150 | 250 | 350 | 650 | 1000 | 1300 |
| Working Capacity(L) | 5 | 8 | 25 | 40 | 80 | 120 | 200 | 280 | 520 | 800 | 1000 |
|
| Scraper Stirring Speed(Rpm) | 0-86 | 0-86 | 0-86 | 0-86 | 0-86 | 0-86 | 0-65 | 0-65 | 0-45 | 0-45 | 0-45 |
|
| Homogenizer Speed(Rpm) | 0-2800 | 0-2800 | 0-2800 | 0-2800 | 0-2800 | 0-2800 | 0-2800 | 0-2800 | 0-2800 | 0-2800 | 0-2800 |
|
| Electrical Heating Power(Kw) | 2 | 2 | 3 | 4 | 6 | 6 | 12 | 12 | 18 | 24 | 24 |
|
| Vacuum Pump Power(Kw) | 0.25 | 0.25 | 0.37 | 0.37 | 0.55 | 1.5 | 1.5 | 2.2 | 2.2 | 3 | 3 |
|
| Lift Way | Electric | Electric | Electric | Electric | Electric | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Water Pot | Design Volume(L) | 3.35 | 7.8 | 25 | 38 | 60 | 100 | 160 | 250 | 400 | 650 | 800 |
| Working Capacity(L) | 2.7 | 6 | 20 | 30 | 45 | 80 | 128 | 200 | 320 | 500 | 650 |
|
| Scraper Stirring Speed(Rpm) | 1200 | 1200 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 960 | 960 | 960 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Oil Pot | Design Volume(L) | 3.35 | 7.8 | 17.5 | 25 | 45 | 75 | 160 | 250 | 320 | 500 | 650 |
| Working Capacity(L) | 2.7 | 6 | 14 | 20 | 35 | 60 | 105 | 150 | 250 | 400 | 500 |
|
| Scraper Stirring Speed(Rpm) | 1200 | 1200 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 960 | 960 | 960 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Total Power | Electrical Heating | 5.5 | 5.5 | 12 | 14 | 24 | 27 | 42 | 48 | 70 | 88 | 91.5 |
| Steam Heating | 1.5 | 1.5 | 5 | 5 | 9 | 9 | 12 | 12 | 22 | 28 | 31.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Dimension(Overall) | Length（A） | 1100 | 1100 | 1400 | 1450 | 1750 | 2650 | 300 | 2950 | 3650 | 3750 | 3750 |
| Width（B） | 620 | 620 | 600 | 600 | 650 | 2700 | 2300 | 2720 | 3420 | 3620 | 3700 |
|
| Closing Hight(C) | 1650 | 1650 | 1900 | 1950 | 2150 | 2500 | 2500 | 2750 | 3230 | 3230 | 2960 |
|
| Rising Hight(D) | 1950 | 1950 | 2400 | 2500 | 2850 | 3350 | 3500 | 3850 | 4560 | 4760 | 4560 |
|
