High Precision Machining Centers CNC Vertical Milling Machine

Product Description

Overview
Application fields: Five-axis machining centers are widely used in aerospace, automobile manufacturing, mold manufacturing, medical equipment, machinery manufacturing and other fields, as well as automobile molds, automobile wheels, engine cylinder blocks, blades, automobile cylinder heads, accessory molds and other automobile parts, aerospace, wind power and other precision industries.
Machine Details
Built-in electric spindle
The electric spindle has good dynamic response performance and can quickly adjust the speed and torque according to processing requirements. This fast response capability is essential for realizing complex five-axis linkage processing, which can ensure the relative movement between the tool and the workpiece is accurate.

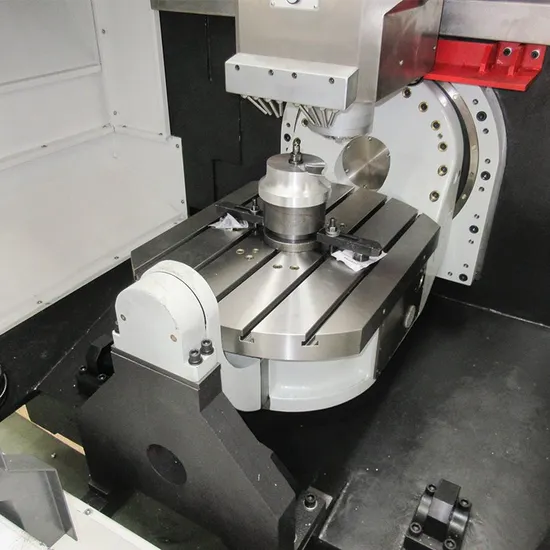

Tilt flip worktable
The tilt flip worktable is designed to realize 5-axis linkage processing function and can process a variety of products. The overall embedded design of the worktable, especially the special process of injecting the gap between the column and the worktable when fixing the worktable, has excellent vibration absorption capacity generated by the joint and the column.
Tool Magazine
The tool magazine of the five-axis machining center can accommodate many different types of tools, including milling cutters, drills, tapping tools, etc., to meet the needs of different processing tasks. The tool magazine can automatically select the appropriate tool for processing without manual intervention, greatly improving processing efficiency and flexibility.
CNC system
Programmable and diverse programs and standard setting functions are easy to operate, and can adjust the processing angle and posture in real time to ensure the accuracy and stability of the processing process. Through one clamping to complete the processing of multiple surfaces, the number of tool and fixture changes is reduced, thereby improving processing efficiency.

Specifications

Specifications		Unit	CMC650u	Remark
Travel range
X axis travel		mm	650
Y axis travel		mm	520
Z axis travel		mm	475
Spindle nose to table surface		mm	150-625
Table
Table size		mm	Φ650X540
T slot(width×distance×quantity)			5-14-100
Max table load		kg	300
Table tilting angle		°	±120
Spindle				CELLS
Spindle speed		rpm	40-12000
Spindle motor power		Kw	7.5
Spindle taper			BBT 40
Spindle input torque(Max)		Nm	90
Tool magazine
ATC	Tool magazine capacity		24	TEYON
	Max tool diameter(Full/Empty)	mm	80/150
	Max tool length	mm	300
	Max tool weight	kg	8
	Exchanging	s	1.75/5
Feeding system
Rapid feed	X,Y,Z axis	m/min	42
	B/C axis	r/min	60/100
Cutting feed speed		mm/min	1-10000
Accuracy
Positioning accuracy	X,Y,Z axis	mm	0.008
	B axis	Angular second	±5
	C axis	Angular second	±5
Repear positioning accuracy	X,Y,Z axis	mm	0.005
	B axis	Angular second	4
	C axis	Angular second	4
Controller
Model			SIEMENS ONE
Axis controlled		Axes	5
Axis linkage		Axes	3linear axis,2 rotary axis
Auxiliary functions
Power request			3 -380V±10%,50Hz
Air request		Mpa	0.5-0.7Mpa
Machine dimension
Length		mm	3970
Width		mm	3250
Height		mm	2870
Weight		kg	9500

Processing Effect
Company Profile
Shandong Vedon Intelligent Equipment Co., Ltd., We Specialize In The Design And Manufacturing Of High-Precision Cnc Machines For Metalwork Processing. Including 5 Axis Machining Center, Gantry Type Machining Center, Horitonal Type Machining Center, Vertical Machining Center, Cnc Lathe Etc.. With A Strong Focus On Innovation, Quality, And Reliability, Our Advanced Cnc Equipment Enables Precision And Efficiency In Every Application. Whether For Small-Scale Operations Or Large Industrial Projects, We Deliver State-Of-The-Art Solutions Tailored To Meet The Diverse Needs Of The Metalworking Industry. Powered By Cutting-Edge Technology And A Commitment To Excellence, We Are Dedicated To Enhancing Productivity And Driving Success For Our Global Clients.
Certifications
FAQ
Q1. Could I put my LOGO on it or paint my own color?
A: Yes, As long as the order quantity reach to the MOQ.
Q2. What's your trade terms?
A: FOB, CIF, DAP or other terms are acceptable.
Q3. Could I order trail small order?
A: Yes,we have no MOQ for standard version products. The price is different from different order quantity.
Q4. What points need to be confirmed before placing the order?
A: Voltage, frequency, plug type trade term and have shipping agent or not.
Q5. What is your terms of payment ?
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, 70% before shippment. If you have another question, pls feel free to contact us as below.

---
