M13100B cylindrical grinder is used to grind cylindrical parts with an outer diameter of φ 100-1000mm and a length of 5000mm. Not only the cylindrical parts can be machined, but also the small end face of the shaft shoulder can be ground by using the axial trace feed of the grinding wheel spindle, and the worktable can rotate 2 °30mm, so the outer cone can also be ground. The radial feed of the grinding wheel is not only fast, but also suitable for adjusting the machine tool, such as electric fast, electric slow, and feed point and automatic. The feed guideway and grinding wheel spindle bearings all use static pressure technology, and are equipped with independent spindle fuel tank and guideway hydraulic station. The worktable guideway is a wide hydrostatic guideway, there is no creeping phenomenon at low speed, and the stroke adjustment is convenient. The rotation of the work piece and the reciprocating motion of the worktable are driven by a DC motor controlled by a controllable silicon tube, which can realize stepless speed regulation. The bed is made of high-strength and low-profit alloy cast iron without splicing, and the guideway is linear.

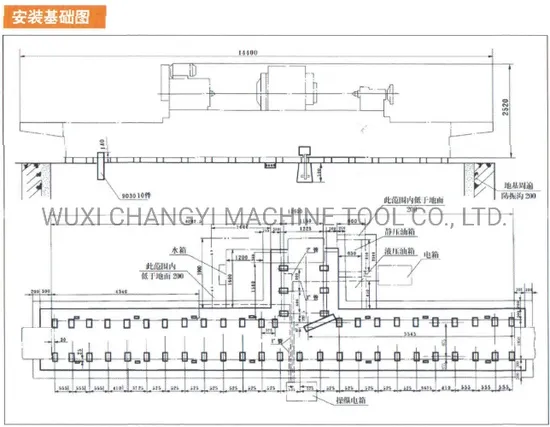

| Grinding diameter scope | φ100-1000mm |
| Max. Work piece loading Length between tops | 5000mm |
| Max. Top sleeve move amount of tail rack | 80mm |
| Max. Weight of work piece | 6000kg |
| Max. Rotation speed (stepless speed regulation) | 6-60 rpm |
| Max. Linear speed of grinding wheel | 35m/s |
| Max. Size og grinding wheel | φ900x75xφ305mm |
| Rapid hydraulic advance and retreat amount of grinding wheel frame | 150mm |
| The maximum movement of the grinding wheel frame on the screw rod | 550mm |
| Grinding wheel frame maneuvering speed (fast) | 0.3m/min |
| Grinding wheel frame maneuvering speed (slow speed) | 0.05m/min |
| Maximum rotation angle of worktable | 2°30' |
| Maximum reciprocating stroke of worktable | 5270mm |
| Grinding wheel motor power | 14/22kw |
| Center height of grinding machine | 510mm |
| Width of machine bench | 1065mm |
| Dimensions of machine tools | 12400*4000*2520mm
|
| Net weight of machine tools | 46500kg |
| Working precision of machine tool | φ220X1800(standard specimen) |
| Roundness | 0.003mm |
| Cylindricity | 0.006mm |
| Roughness | Ra≤0.32um |
