US$0.10-2.85
|
5,000 Meters
(MOQ)
|
Basic Info.
Material Shape
Round Wire
Wire Core Material
Bare Copper Wire
Certification
CE, ISO, RoHS, CCC
Color
Red Black Blue White Yellow
Operating Temperature
-15ºC+70ºC
Transport Package
Customers Customized
Production Capacity
6000000meters/Year
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
1.000kg
Product Description

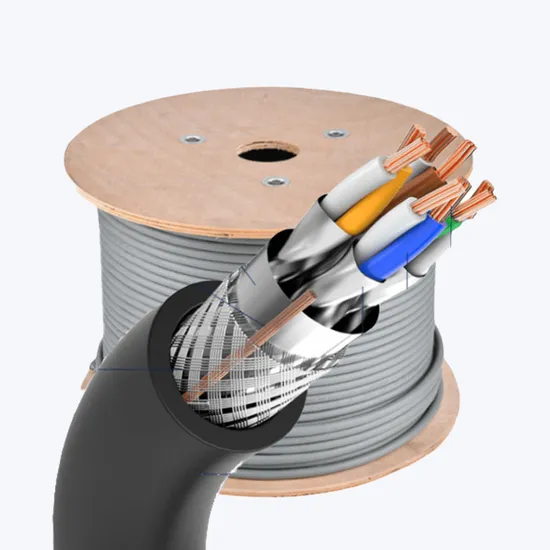

High Speed UTP / SFTP / FTP Network Cat6 Lan Cable 24AWG
1.Production Description:
| Conductor | 4 pairs ,Solid Bare Copper,CCA,CCS |
| Conductor O.D | 0.50/0.57mm |
| Insulation | HDPE Insulationminimum thickness of 0.18 mm , diameter 0.9 ± 0.02 mm |
| Filler | Ripcord |
| Jacket | PVC, (minimum thickness 0.4 mm) |
| Nominal Overall Diameter | 6.0 mm |
| Length | 100m,200m,305m,as your request |
| Package | pull box,wooden reel,paper reel,or OEM welcome |
| Packing measurement | 22 x 35 x 35 cm (W x H x D) - 305 m |
| Shipping date | 10days after receive the deposit |
| .Delivery terms | EXW,FOB,CIF |
| Payment terms | T/T OR LC |
| Bending radius | 8xOduring installation, 6xOwith vertical Cabling, 4xO the horizontal cabling |
2.Product Parameter:
Conductor O.D(mm)
| Insulation O.D(mm)
| Pairs
| Screem
| Completed Product O.D(mm)
| Sheath
|
0.5/0.51
| 0.91
| 4
| N/A
| 5.0
| PVC/LSOH
|
0.5/0.51
| 0.91
| 4
| N/A
| 5.8
| LSFROH
|
0.5/0.51
| 0.91
| 4
| N/A
| 5.1
| PE
|
0.5/0.53
| 1.00
| 4
| aluminium foil
| 5.8
| PVC/LSOH
|
0.5/0.53
| 1.00
| 4
| aluminium foil+copper wire braiding
| 6.5
| PE
|
0.5/0.53
| 1.00
| 4
| aluminium foil+copper wire braiding
| 6.8
| PVC/LSOH
|
0.5/0.53
| 1.00
| 4
| aluminium foil+copper wire braiding
| 7.0
| LSFROH
|
3.Application:-Computer network cabling project
- Broadband network communication
- Ethernet network
-Audio and data transmission
-10/100 Base-T4
-100Base-TX
-1000Base-T(Gigabit Ethernet)
4.Product Details:
About US
Zhejiang Qinshan Cable Co., Ltd, builted in 1983, locates in the birthplace of China's Nuclear Power Station--Qinshan Town, covering 26,000 squares meters. With registered capital of 16 million US dollars, Zhejiang Qinshan Cable Co., Ltd has its own registered trademark of "Qinshan" and dozens of inventions. Honored as one of the provincial high-tech private enterprise, qualified supplier of China Nation Nuclear Corporation and the State Grid Corporation, R&D center of environmental aerospace materials, Jiaxing municipal demonstration creditable company, AAA grade of creditable company and creditable private enterprise
