Welcome to visit

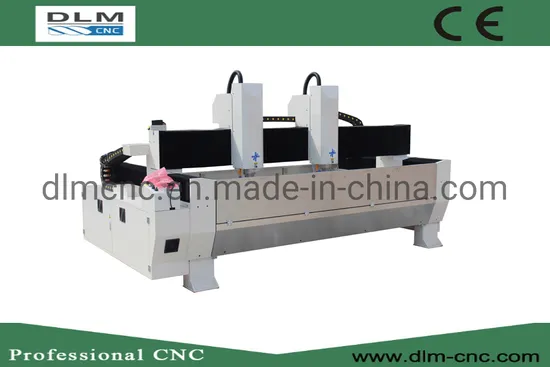

2 Heads CNC Marble Engraving Machine

US$7,500.00-9,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
DLM-2513-2
Function
Cutting
Application Material
Marble
Automation
Automatic
Control
CNC
Motor Power
Small Power
Engraving Head Speed Adjustability
Wide Adjustable Range
Certification
CE, ISO
Current
AC
Application
Advertising, Stone Industry
Customized
Customized
Spindle
5.5kw / 7.5kw
Table
T-Slot Steel Table and Water Tank
Motor
Servo Motor
Controller
Taiwan Syntec
Chiller
Cw 5000
Rail
25mm Hiwin
Rack
Helical Rack
Ball Screw
High Precision
Transport Package
Plywood Box
Specification
2500mm*1300mm
Trademark
DLM
Origin
China
HS Code
84609090
Production Capacity
500 Sets/ Year

Product Description

CNC Marble Engraving and Cutting Machine DLM-2513-2
Applicable industries:
Stone working: engraving various granite, bluestone, marble, gritstone, soapstone ceramic tile and so on etc.

Marble cnc carving machine for Metal working also: can engarve on various colorful metals like aluminum, brass and so on.
Technical Parameter:
Description Parameter
X,Y working area 2500mm*1300mm
Z working area 200mm
Table design heavy duty
Resolution 0.05mm
Lathe structure Seamless welded steel structure
X,Y structure Pack and pinion transmission, Linear orbit
Z structure Imported ball screw
Max. idling speed 40m/min
Spindle motor power 5.5Kw/ 7.5KW / water cooling * 2 sets
Spindle rotate speed 0-24000r/min
Working voltage AC380V/50Hz
Working mode Servo motor
Driver Servo
Command G code, HPGL, U00, mmg, plt
Operating system Taiwan Syntec
Interface USB
Diameter of cutter φ3.175 , φ6 φ, 12.7mm
Dust-collect function Yes
Working-holding By clamp
Net weight 3000KG
