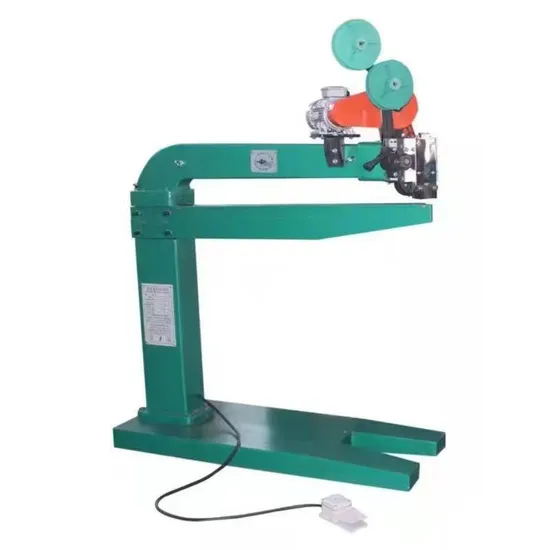

Semi Automatic Corrugated Cardboard Stitching Carton Box Making Machine

Product Description

Specification

Model	Length of the stretched arm	Height of Operation table	Power	Shape size (mm)	Gross weight (about kg)
DXJ-1200	1200	1075mm	0.37KW	1700*700*1820	400
DXJ-1400	1400	1075mm	0.37KW	1900*700*1820	500
DXJ-1600	1600	1075mm	0.37KW	2100*700*1820	800
DXJ-1800	1800	1075mm	0.37KW	2300*700*1820	900

Foot pedal double servo automatic nailing machine is an advanced --- carton nailing machine product developed and improved by combining the advantages of Taiwan high-speed nailing machine and semi-automatic nailing machine. Is the current domestic advanced high efficiency of the foot servo automatic nailing machine, the machine is the advanced 2 sets of servo drive motor to control mechanical transmission and nail head action, servo motor with brake positioning, less energy consumption, electronic devices, low failure rate, easy to operate, suitable for various sizes of carton nailing. It is the ideal box-booking equipment for a modern carton factory.
Main accessories and instructions:
★ The biggest advantage of this machine is that it can solve the problem of the molding effect of the carton due to the box opening slot pressure line (i. e., the scissors mouth of the carton or the problem of large seam and small seam). At present, this problem is a big problem in the automatic nailing machine and automatic nailing machine, which is one of the main reasons why many customers do not choose to use semi-automatic nailing machine and choose to use this foot servo semi-automatic nailing machine.
★ Dual servo drive, accurate accuracy, mechanical transmission part reduced, can effectively reduce the failure rate of machinery.
★ MCGS screen operation, parameters (nail distance, number of nails, nail) is convenient and fast.
★ The entire control system adopts the Taiwan Yonghong PLC control system.
★ Base die, blade made of Japanese tungsten steel (wear resistance)
★ The whole group of nail head Taiwan design, all made of special mold steel, computer gong precision processing
★ Can be nailed single nail, double nail, strengthen the nail (both ends are the middle part of the double nail is a single nail) one-time completion, can suit different customers for different requirements of the nail.
★ Changing the size of the carton and adjusting the distance between the carton nails can only take one minute to complete, greatly saving time and convenient operation.
★ Can be nailed single piece carton can also be nailed double piece molding carton, one machine dual use.
★ This machine can reduce the labor intensity of employees, and greatly improve the work efficiency and enthusiasm of employees.

---
