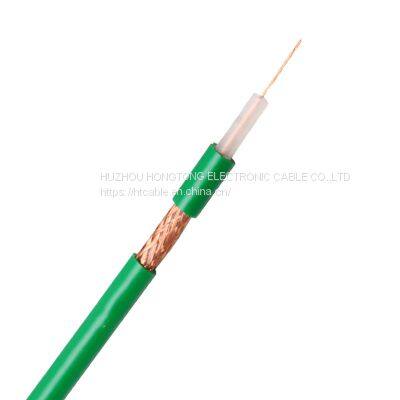

best price coaxial cable kx6 for CCTV

Product Details

Product Description

Product Description
Quick Details
Place of Origin: China (Mainland)
Brand Name: OEM
Model Number: KX6
Type: Coaxial
Application: Video/Audio/Satellite, Video/Audio/Satellite
Color: Green
Packing: Carton Box
Outer Diameter: 6.15mm
Connector Color: According to customers
Connector Type: According to customers
Shielding: Braid, Al-Mg Wire/ CCA/ Copper/ Tinned Copper
Gender: According to customers
Inner conductor: Bare Copper
Insulation: PE
Outer Jacket: PVC
Jacket Color: Green/White/Black/ According to customers
Impedance: 75 Ohm
Certificate: CE/ROHS/ISO
Delivery: Within 10 days
OEM: OK
Packaging & Delivery
Packaging Details:Delivery Detail:

1. Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 500m/roll. 2. Inner packing: Wooden reel, plastic reel, and paper reel. 3. Outer packing: Carton box, pull out box, pallet available. 4. Other packing available according to client's request.

Within 10 days for ready (depends on quantity)

Specifications
best price coaxial cable kx6 for CCTV
1.Good quality with best price
2.Timely delivery
3.CE, ROHS, ISO
4.OEM is OK
best price coaxial cable kx6 for CCTV

1) Specification RG6/U
Center Conductor	7*0.2mm Bare Copper
Dielectric	3.7mm PE
Shield	60% Copper wire braid
Jacket:	6.15mm PVC
Approved (UL)	CMX, CM, CATV, CL2, CMR
Jelly/APD	As Customer's requirment
2) Characteristics
Sparker Test4000VACImpedance75+3 OhmCapacitance50+3pF/mVelocity of Propagation:85%Return Loss:20dB min (5-2300MHz)

3) Attenuation
Attenuation[@68o F. (20o C.)]Frequency (MHz)Maximum (dB/100 ft.)Maximum (dB/100 m)50.461.50501.314.302002.568.404003.6612.08005.3417.509505.8619.2013507.1123.30

4) Application
1. Coaxial cable for CATV,CCTV systems
2. For satellite systems
5) Packing
1. Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 500m/roll.2. Inner packing: Wooden reel, plastic reel, and paper reel. 3. Outer packing: Carton box, pull out box, pallet available.4. Other packing available according to client's request.
6) Additional value
We produce all kinds of coaxial cables. Also we offer Lan cable Cat5e, Cat6e; Security cable; Telephone cable; Alarm cable; Speak cable etc. Welcome all requirements!
We promise you Good quality; Competitive price; Quick response!
